Simplex Large Diameter Fiber Automatic Thermal Stripper with 2.8 inches Touch Color LCD Monitor
تفاصيل المنتج
| الألياف المطبقة | ألياف السيليكا المخزنة | مواد الطلاء المقبولة | بوليميد، اكريليت |
|---|---|---|---|
| قطر الكسوة | 60 ميكرومتر إلى 800 ميكرومتر | قطر الطلاء | 100 ميكرومتر إلى 1000 ميكرومتر |
| عدد الألياف | ألياف مفردة (بسيطة) | طول تجريد | ≥58 مم (قابل للتعديل) |
| حامل الألياف | متاح بشكل منفصل (قابل للتغيير) | نطاق درجة حرارة السخان | 60 درجة مئوية إلى 120 درجة مئوية (قابل للتعديل) |
| وقت التدفئة | 0 إلى 20 ثانية (قابل للتعديل) | حياة النصل | 30,000 عمر شفرة شريطية لشقوق الألياف المفردة |
| شفرة قابلة للاستبدال ميدانيًا | نعم، استخدم RB-LD463 | لغة | الإنجليزية/الصينية |
| شاشة | شاشة LCD ملونة تعمل باللمس مقاس 2.8 بوصة | قوة | 12 فولت تيار مستمر، 3 أمبير (مزود بمصدر طاقة خارجي) |
| إمدادات الطاقة الخارجية | 100 - 240 فولت تيار متردد، 1.0 أمبير، 50/60 هرتز |
منتوج وصف

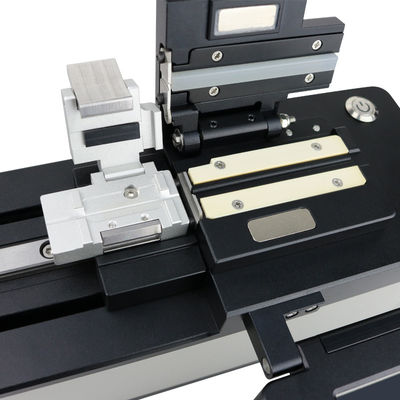

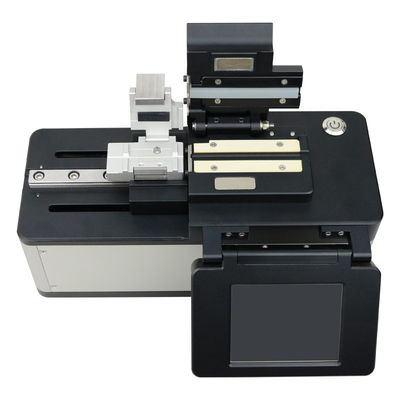

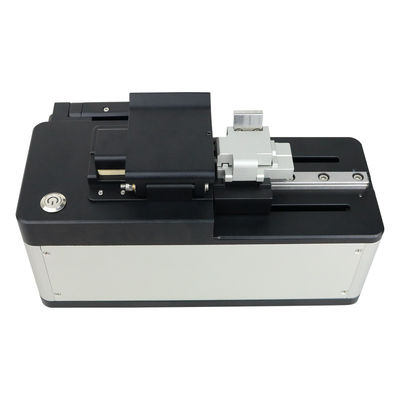

Simplex Large Diameter Fiber Automatic Thermal Stripper
with 2.8 inches Touch Color LCD Monitor
Auto & Precision & Durable
Description
Simplex large diameter fiber automatic thermal stripper ATS99-LD51 provides excellent strength performance when removing 100μm to 1000μm buffer from optical fibers. Heating temperature and duration are fully adjustable for a variety of buffer materials. It always gives customers stable operation, high quality of stripping, and productivity with its auto motor and linear motion guide bearing. Self-centering blades eliminate the need for an external guide and make replacement quick and easy. Designed for use with different buffer and cladding diameter of fiber holder systems, the ATS99-LD51 is an ideal solution for stripping when high-strength fusion splices are a must.
The ATS99-LD51, which also works as a window stripper, is a high precision tool for stripping the middle (mid-span stripping) of optical fiber. With auto motor and LM guide bearing, it has been realized a high quality and productivity strip without any cracks on fibers. (Occurrence ratio of cracks: 0%, High tensile power of fiber)
Features
- High Quality, High Productivity, More convenience
- Field serviceable stripper blade & fiber holder
- Stabilized stripping with automatic motor
- Consistent quality of stripping.
- No Fiber Crack or Degradation & Keep High Tensile Strength
- High Tensile Strength > 4kg/f
- Applicable for simplex large diameter fiber buffer from 100μm to 1000μm
- Customized setting with adjustable heating temperature, time, and stripping length:
-
--- Heating temperature range: 60℃～120℃
--- Heating time range: 0s~20s
--- Stripping length range: 1mm~58mm
- Chemical Strip Draw-backs Resolved (Drawback of the chemical strip as below):
-
--- Difficult control of strip lengths
--- Chemical residues on the tripped fiber end
--- Rugged shapes on strip ends
Specifications
| Model No. | ATS99-LD51 |
| Applicable Fiber | Buffered Silica Fiber |
| Accepted Coating Material | Polyimide, Acrylate |
| Cladding diameter | 60μm to 800μm |
| Coating Diameter | 100μm to 1000μm |
| Fiber Count | Single fiber (Simplex) |
| Stripping Length | ≤58mm (adjustable) |
| Fiber Holder* |
Available Separately (Changeable) |
| Heater Temperature Range |
60°C to 120°C (adjustable) |
| Heating Time |
0s to 20s (adjustable) |
| Blade life* | 30,000 strip blade life for single fiber cleaves |
| Field replaceable blade | Yes, use RB-LD463 |
| Language | English/Chinese |
| Monitor | 2.8 inches Touch Color LCD |
| Power | 12 VDC, 3 A (Provided by External Power Supply) |
| External Power Supply | 100 - 240 VAC, 1.0A, 50/60 Hz |
| Dimensions (W x D x H) | 200(W)×80(D)×110(H) mm |
| Weight | Approx. 1.6KG |
| Operating Conditions |
0 °C to 40 °C, 0% - 85% RH (Non-Condensing) |
| Storage Conditions |
-40 °C to 80 °C, 0% - 95% RH (Non-Condensing) |
Note:
*1: Blade life is not guaranteed. It may vary depending on the operating environment. No visual defects on blade edge testing by 300X microscope.
2: Be sure to purchase the appropriate fiber holder set for the desired coating diameter: FH-LD250 accepts Ø100 µm to Ø250 µm fiber; FH-LD400 accepts Ø400 µm fiber; FH-LD550 accepts Ø550 µm fiber. Custom lager diameter fiber holder available.
Order Information
| Model No. | Description | Remarks |
| ATS99-LD51 |

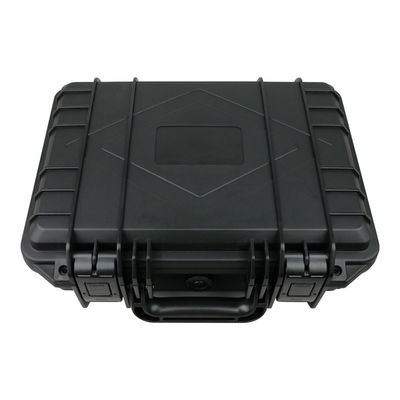

1 PCS Simplex Large Diameter Fiber Automatic Thermal Stripper with 2.8 inches Touch Color LCD Monitor, 1 PCS 12 VDC External Power Supply Adapter w/ Location-Specific Power Cord 1 PCS Nylon Cleaning Brush 1 PCS Large Diameter Fiber Holder (One Required, Size as Requested) 1 PCS Carrying Case 1 PCS User Manual |
Fiber Holder |
Accessories (Options/Consumables)
sold separately
| Model No. | Description | Remarks |
| RB-LD463 | Replacement Blade for ATS99-LD51 | |
| FH-LD400 | Large Diameter Fiber Holder for 250/400μm Cladding/Coating fiber | |
| FH-LD550 | Large Diameter Fiber Holder for 400/550μm Cladding/Coating fiber |
Note:
- The blade may need to adjust after changing fiber holder for different diameter fiber.
- Custom large diameter fiber holder available.
