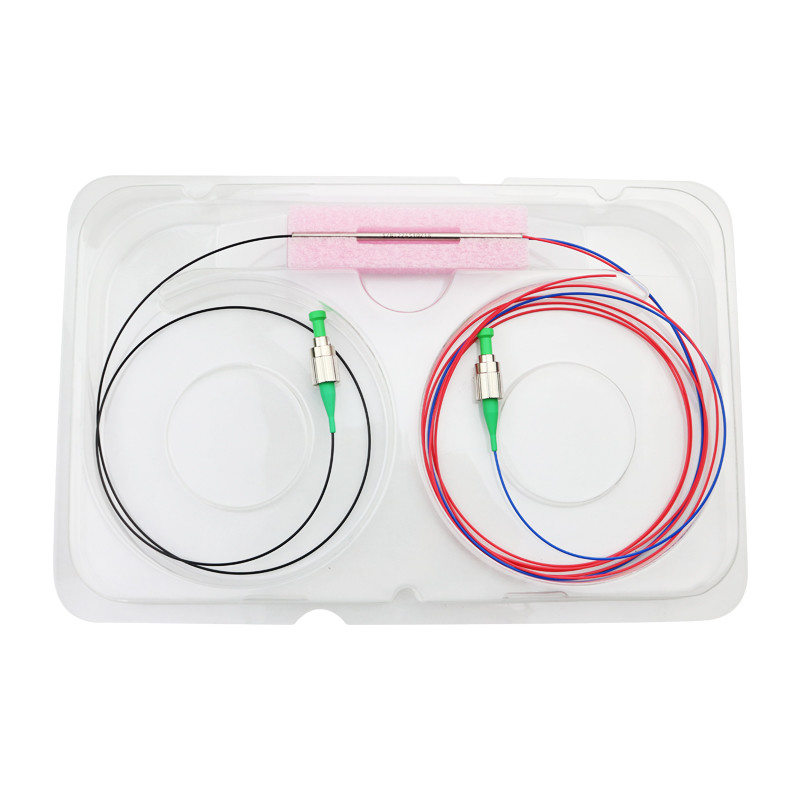

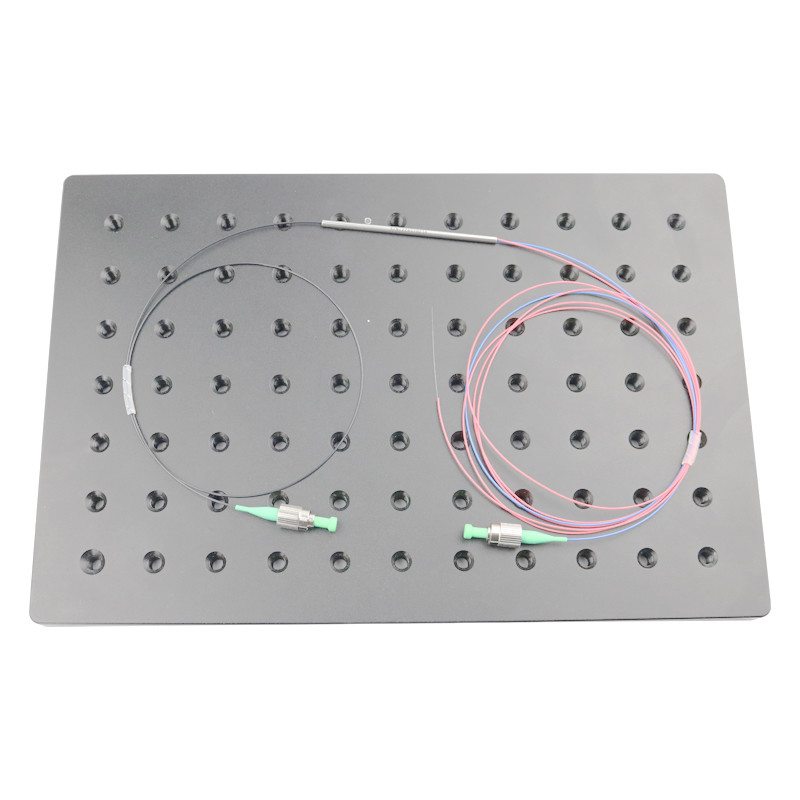

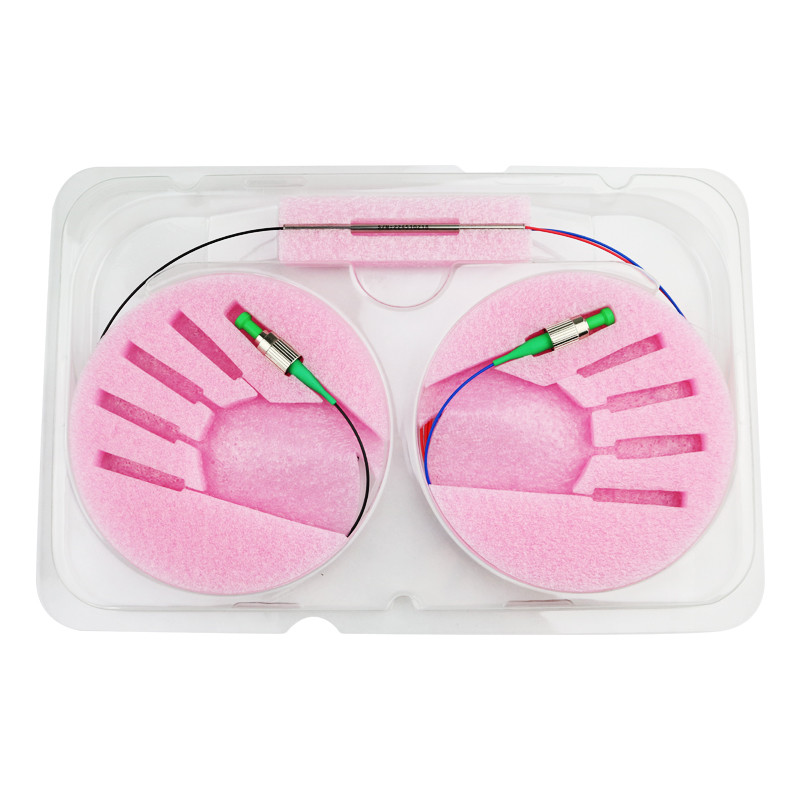

780nm 1x2 Polarization-Maintaining (PM) Fiber Optic Splitters/Couplers/Taps

Fiber Optic Splitters/Couplers/Taps

780nm 1x2 Polarization-Maintaining (PM)

Description

These 1x2 Polarization-Maintaining (PM) Fiber Couplers are designed for operation at 780 nm and are available with a 50:50, 60:40, 70:30, 75:25, 80:20, 90:10, or 99:1 coupling ratio. 1x2 couplers have only one input port for simplified use and cable management. These couplers are ideal for applications where light is split from the input port into two output ports at the specified coupling ratio; unlike WDMs, they are generally not recommended for beam combining applications. The unused port is internally terminated within the coupler housing in a manner that minimizes back reflections.

PM couplers are manufactured using PANDA fiber which allows them to maintain a high polarization extinction ratio (PER) when light is launched along the slow axis of the fiber. As seen in the diagram below, stress rods run parallel to the fiber's core and apply stress that creates birefringence in the fiber's core, allowing polarization-maintaining operation. Typical applications for PM couplers include optical sensors, optical amplifiers, and fiber gyroscopes.

Our PM Couplers provide a high PER (≥16 dB including connectors) and a wide -40 °C to 85 °C operating range. Note that the PER will vary with temperature; They have a maximum power handling of 500 mW with connectors or bare fiber and a maximum power handling of 2 W when spliced. These couplers undergo extensive testing and verification of the PER; Testing results are included with a data sheet that is shipped with couplers.

These couplers are available with 2.0 mm narrow key FC/PC or FC/APC connectors. Fiber leads are jacketed in Ø900 µm Hytrel^®* tubing and the leads are 0.8 m long. Custom coupler configurations with other wavelengths, fiber types, coupling ratios, alignment axes, or port configurations are also available. Please contact us with inquiries.

*Hytrel^® is a registered trademark of DuPont Polymers, Inc.

PANDA PM Fiber Cross Section

The connector key is aligned to the slow axis of the fiber.

Features

* 780 nm Polarization-Maintaining Fiber Optic Couplers

* 50:50, 60:40, 70:30, 75:25, 80:20, 90:10, or 99:1 coupling ratio

* 2.0 mm Narrow Key FC/PC or FC/APC Connectors

* 0.8 m Long Fiber Leads with a Tolerance of +0.075 m / -0.0 m

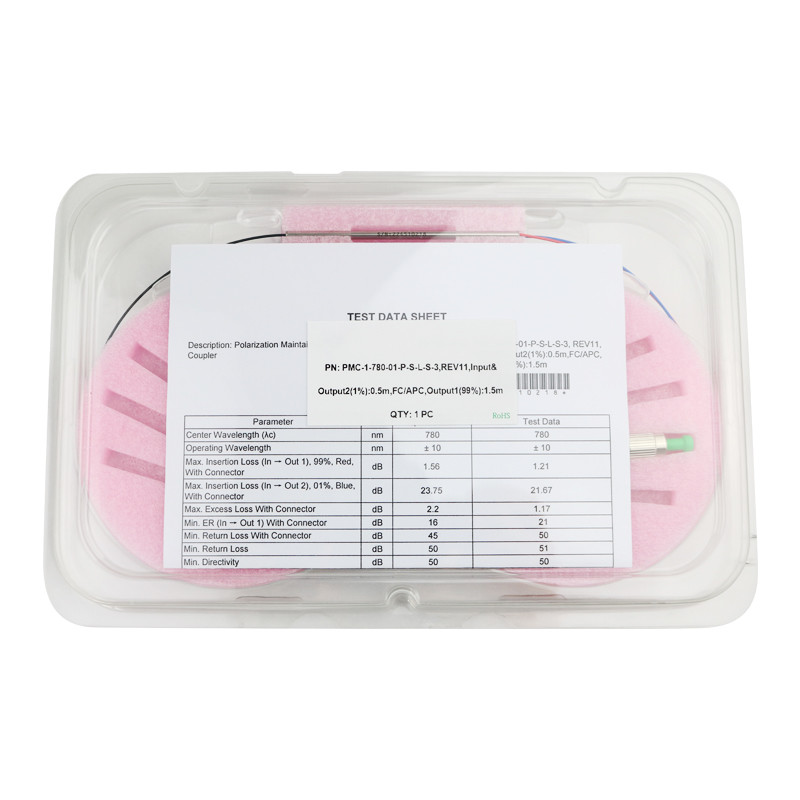

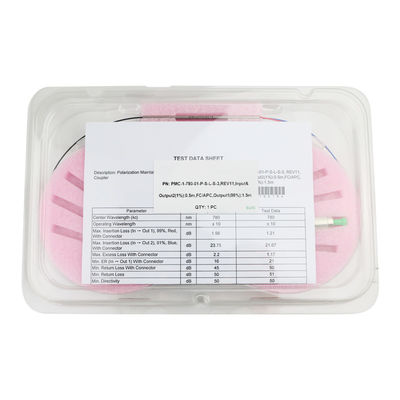

* Individual Test Report Included with Each Coupler

* Contact Us for Custom Wavelength, Coupling Ratio, and Connector Options

Specifications

Notes:

1. Values are specified with a slow axis launch at room temperature without connectors and measured at the center wavelength through the input port.

2. Specified with a slow axis launch at room temperature with connectors and measured at the center wavelength through the input port.

3. Specifies the total maximum power allowed through the component. Coupler performance and reliability under high-power conditions must be determined within the user's setup. See Usage Tips for safety and handling information.

4. The fiber used in this coupler is compatible with patch cables using Coherent’ PM780-HP fiber, Other fiber types may be available upon request. Please contact us with inquiries.

Usage Tips

1. Before connecting a component to a system, make sure the light source is turned off. Inspect both the input and output fiber ends; debris or contamination on the end face can lead to fiber damage when operated at high power.

2. After connecting the component, the system should be tested and aligned using a light source at low power. The system power can be ramped up slowly to the desired output power while periodically verifying all components are properly aligned and that coupling efficiency is not changing with respect to optical launch power.

3. Optical connectors can be removed and the device can be spliced into a setup for operation at higher optical powers. Fiber ends should always be cleaned and cleaved prior to splicing.

Ordering Information

Port Configuration,

Wavelength,

Coupling Ratio,

Package Type, Fiber Type,

Input: Connector Type, Cable Diameter, Cable Length

Other Special Requests

Example:

Polarization-Maintaining Fiber Coupler,

1x2,

780nm,

1:99,

Tube type, Corning Panda PM 850 fiber,

Input: FC/APC, 0.9mm, Black, 0.5 Meter,

Output 1: Bare fiber (Unterminated), 0.9mm, Red, 1.5 Meter,

Output 2: FC/APC, 0.9mm, Blue, 0.5 Meter.

*0.9mm Color-coded Tube

*Note: Customized Color-coded Combination is Available.
