KN-6000 Fiber Optic Polishing and Termination Tool Kits (Custom Details are Available)
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| حقيبة الحمل | 487 × 290 × 178 ملم |
|---|
منتوج وصف
Fiber Optic Termination Tool Kits
Description
The KN-6000 fiber optic polishing and termination tool kit contains all of the latest popular fiber optic tools and consumable material necessary for epoxy and polish connector terminations (SC/ST/FC and LC connectors). The kits are supplied with user instructions and termination procedures. Please feel free to contact our technical support department for additional assistance.
Content Details

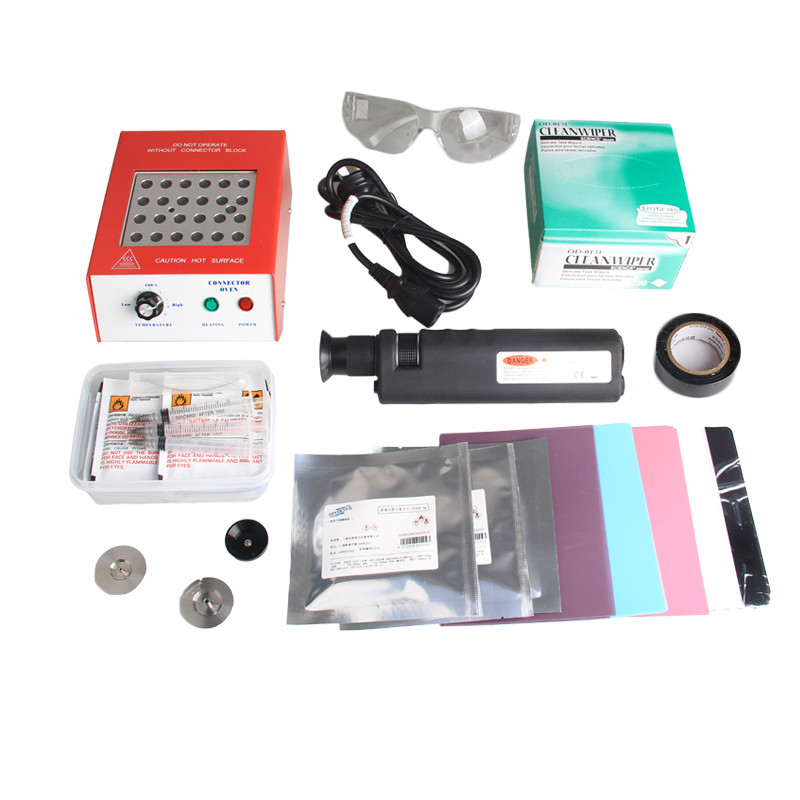

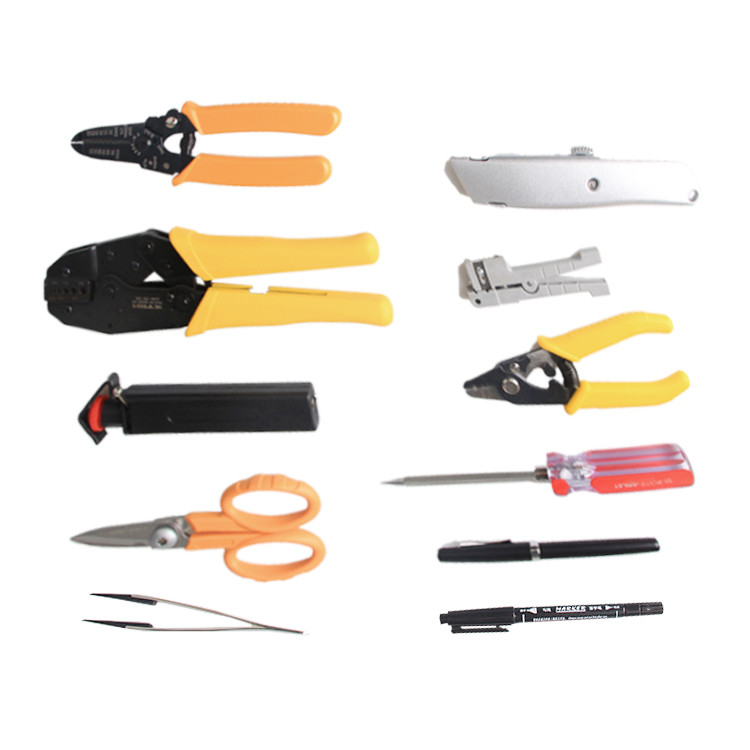

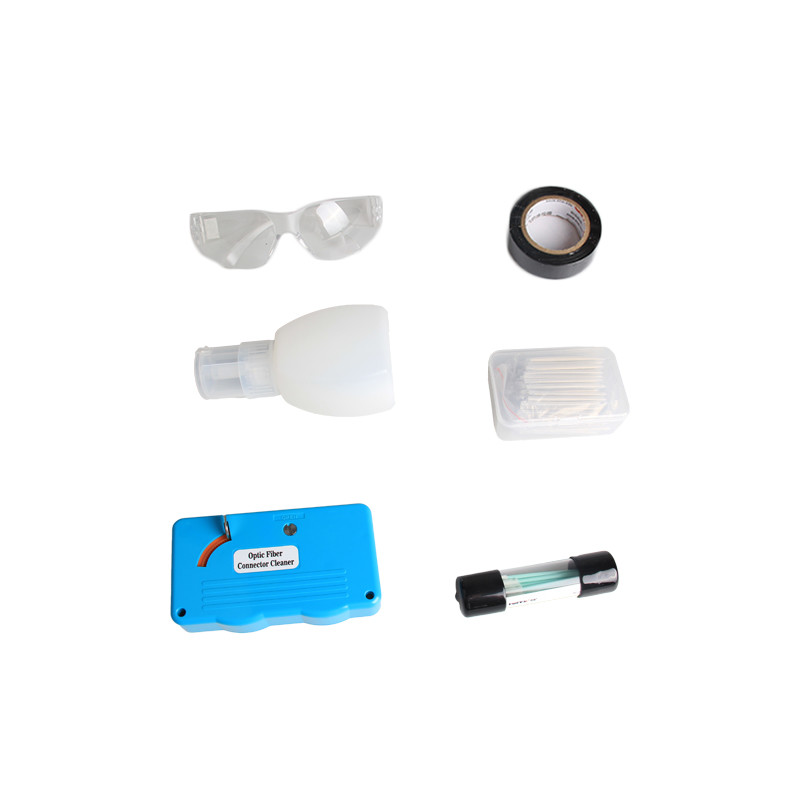

KN-6000 Fiber Termination Kit contains:
| No. | Description | Quantity |
| 1 | 3-hole Fiber Stripper | 1 |
| 2 | Kevlar Shear (Aramid Yarn Scissor/Cutter) | 1 |
| 3 | Carbide Fiber Scribe, Pen-type | 1 |
| 4 | Cable Jacket Stripper, AWG 30~22 (0.25~0.80mm) | 1 |
| 5 | Fiber Optic Crimping Tool | 1 |
| 6 | Buffer Tube Stripper, 45-162 Grey | 1 |
| 7 | Rotary Cable Stripper | |
| 8 | Fiber Inspection Microscope, 400x microscope magnification, w/ 1.25mm and 2.5mm Universal Adapter | |
| 9 | Flexible piano wire | 10 |
| 10 | Precision tweezers, 130mm | 1 |
| 11 | 24 holes fiber curing oven | 1 |
| 12 | Epoxy, 353ND | 3 |
| 13 | 3ml Epoxy Application Syringe | 3 |
| 14 | 30um Polish Film - 8sheets, Size: 14mmx11mm | 8 |
| 15 | 9um Polish Film - 8sheets, Size: 14mmx11mm | 8 |
| 16 | 1um Polish Film - 8sheets, Size: 14mmx11mm | 8 |
| 17 | 0.2um Polish Film - 8sheets, Size: 14mmx11mm | 8 |
| 18 | Universal Stainless-steel Hand Polish Disc, 2.5mm SC/FC/ST universal Polish Disc (Puck) | 1 |
| 19 | Universal Stainless-steel Hand Polish Disc, 1.25mm LC/MU universal Polish Disc (Puck) | 1 |
| 20 | Rubber Polish Pad | 1 |
| 22 | Pre-Moistened Alcohol Wipes | 10 |
| 23 | Wipes, 280 | 1 |
| 24 | Cleaning Swabs | 25 |
| 25 | Reel-type Cleaner | 1 |
| 26 | 250ml Plastic Twist-Lock Automatic Alcohol Dispensing Bottle | 1 |
| 27 | 3M Electrician Tape | 1 |
| 28 | Screwdriver | 1 |
| 29 | Utility knife | 1 |
| 30 | Utility component box with 100pcs splice protection sleeves | 1 |
| 31 | Black Marker | 1 |
| 32 | Safety Glasses | 1 |

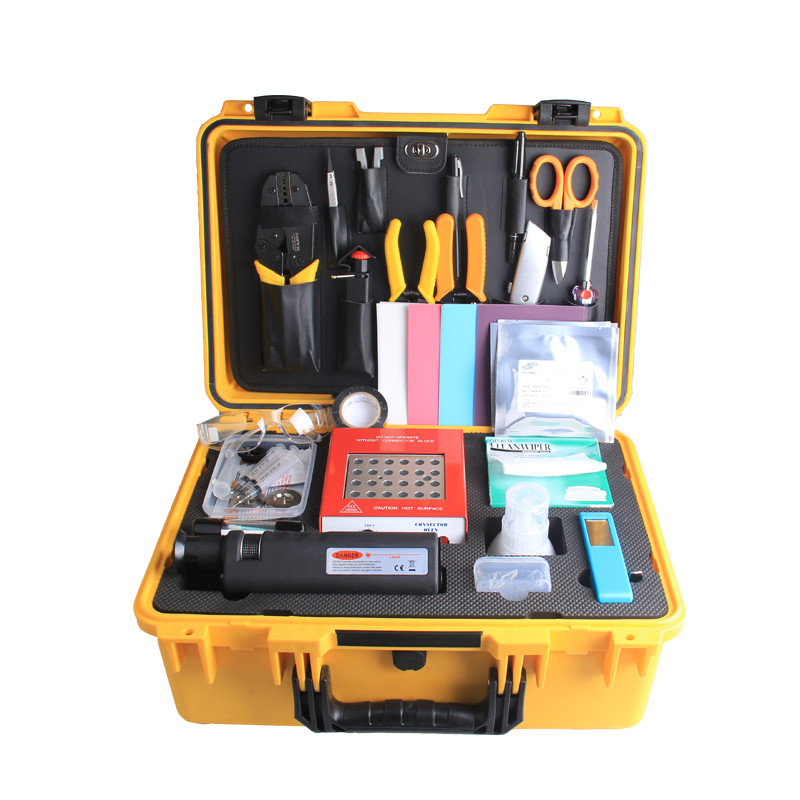

| 33 | Carrying Case(487×290×178mm) | 1 |
*Custom polish films and quantity of consumables are available
