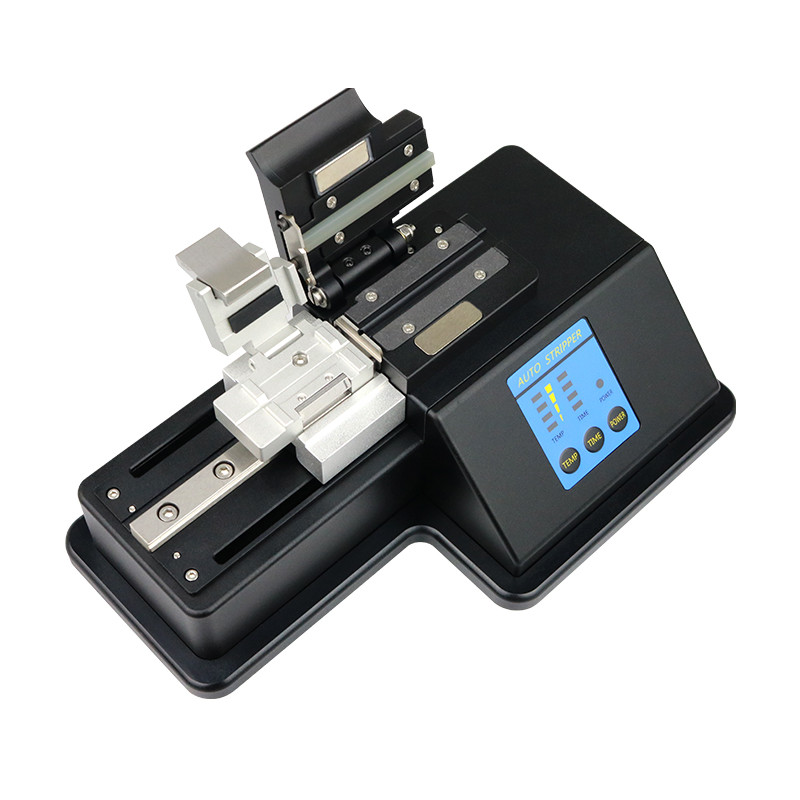

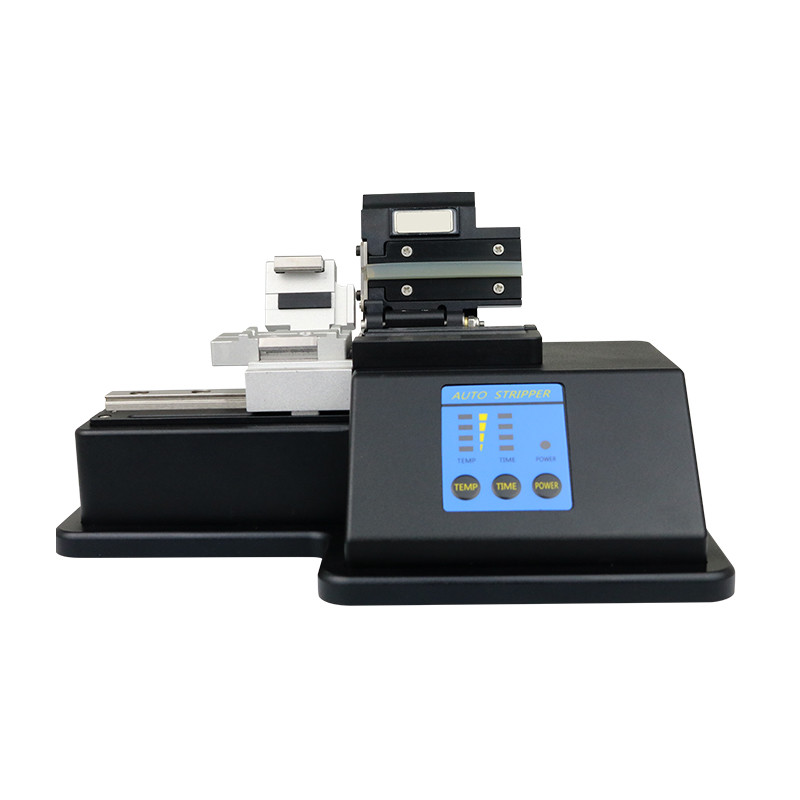

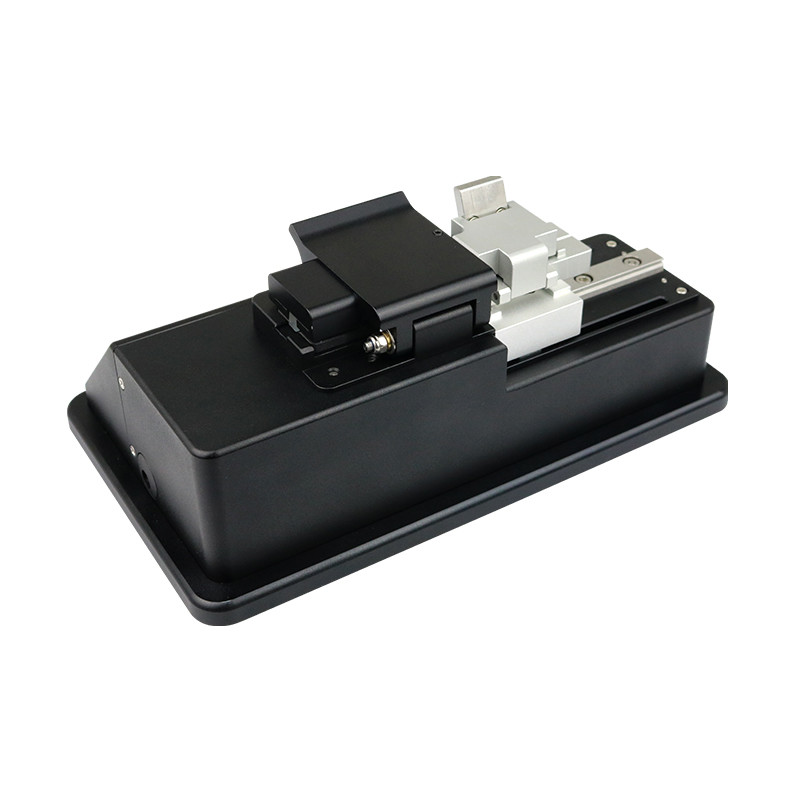

Simplex Large Diameter Fiber Thermal Strippers with Customized Settings

Simplex large diameter fiber automatic thermal stripper ATS99-LD51 provides excellent strength performance when removing 100μm to 1000μm buffer from optical fibers. Heating temperature and duration are fully adjustable for a variety of buffer materials. It always gives customers stable operation, high quality of stripping and productivity with its auto motor and linear motion guide bearing. Self-centering blades eliminate the need for an external guide and make replacement quick and easy. Designed for use with different buffer and cladding diameter of fiber holder system, the ATS99-LD51 is an ideal solution for stripping when high strength fusion splices are a must.

Ÿ High Quality, High Productivity, More convenience

Ÿ Field serviceable stripper blade & fiber holder

Ÿ Stabilized stripping with automatic motor

Ÿ Consistent quality of stripping.

Ÿ No Fiber Crack or Degradation & Keep High Tensile Strength

Ÿ High Tensile Strength > 4kg/f

Ÿ Applicable for simplex large diameter fiber buffer from 100μm to 1000μm

Ÿ Customized setting with adjustable heating temperature, time, stripping length:

--- Heating temperature range: 60℃～120℃

--- Heating time range: 0s~20s

--- Stripping length range: 1mm~58mm

Ÿ Chemical Strip Draw-backs Resolved (Drawback of chemical strip as below):

--- Difficult control of strip lengths

--- Chemical residues on tripped fiber end

--- Rugged shapes on strip ends
