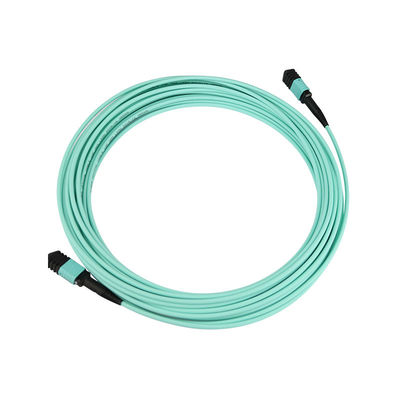

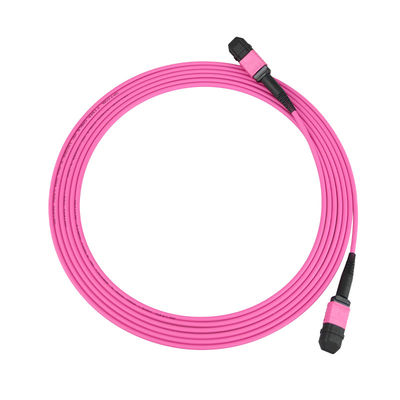

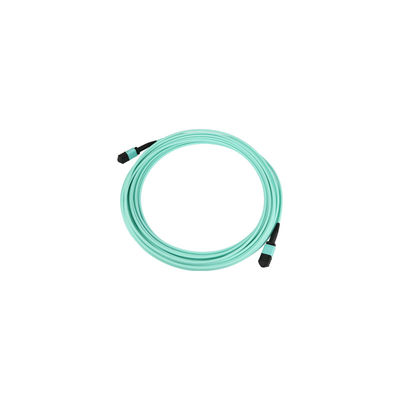

SENKO, LSZH 3.0mm 12F, Type B, Pre-terminated MPO Patch Cords
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| موصل | سينكو، الولايات المتحدة CONEC، الخ. | وضع الألياف | وضع واحد أو متعدد |
|---|---|---|---|
| فقدان الإدراج (DB) | .70.70 (قياسي)، .350.35 (النخبة) | فقدان العودة (DB) | ≥60 (SM)، ≥20 (مم) |
| المتانة (ديسيبل) | .20.2 (500 مرة التزاوج) | قوة الشد (كجم) | 10 |
| درجة حرارة العمل (℃) | -20 ~ +70 |
منتوج وصف
MPO/MTP Pre-terminated Patch Cords/Cables
Description
MTP/MPO Fiber Optic Patch Cable consists of multi-core fiber optic cable and corresponding 4/8/12/24 core high-density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single-mode and multimode, the single-mode fiber includes G.652D / G.657A1 / G.657A2, the multimode fiber includes OM1 / OM2 / OM3 / OM4 / OM5 or bend-insensitive multimode cable.
With strong MPO/MTP product design and manufacturing ability, we could provide products tailed to customer requirements. All products we delivered with excellent performance and reliability.
Features
- Customized, high adaptability
- Optional different fiber cores and cable structures for different installation requirements
- PVC, LSZH, OFNR, OFNP cable jacket available
- Improved and simplified cabling, reduce cabling spacing

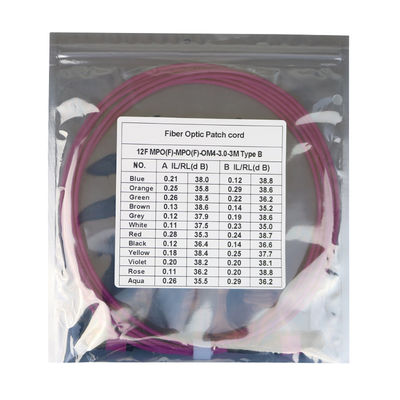

- All patch cables are 100% tested, test report supplied with each cable assembly
- Interferometer, Insertion Loss, Return Loss, and Visual Final Inspection testing, all measured values are electronically archived
Standards Compliance
- TIA/EIA-568-C
- IEC-61754-7
- NFPA 262 (OFNP) or IEC 60332 (LSZH)
- IEC-60793
- GR-1435-CORE
Applications
- Data Center
- Fiber to the home
- High-density fiber optic cable management
- 40Gb/s or 100Gb/s Applications
Connector Specifications
| MTP/MPO Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) |
≤0.70 (Standard) ≤0.35 (Elite) |
≤0.70 (Standard) ≤0.35 (Elite) |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
MTP/MPO Connector Geometry Parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of Curvature (mm) | 500 | - | 50 | - |
| Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Fiber Height (nm) | 1000 ~ 3000 | |||
| Max Fiber Height Error (nm) | 600 | |||
| Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
| Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
| Central Concave (nm) | 300 | |||
| Interferometer view of MTP Connector |  |
|||
Fiber Specification
| Fiber Type | Multimode | Single Mode | ||||
| OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
| Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
| Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
| Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
| Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | - | - |
| Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | - | - |
*The effective modal Bandwidth for multimode is 850nm.
Patch Cable Structure
Notes:
Fiber Core: 2, 4, 8, 12, 24
Cable Sheath Color:
Yellow – SM Fiber Cable (OS1OS2)
Orange – MM Fiber Cable 62.5/125 (0M1), 50/125 (OM2)
Aqua –MM Fiber Cable 50/125 (OM3)
Violet –MM Fiber Cable 50/125 (OM4)
Strength Member: Aramid yarn
Color Coating Fiber: (2 to 24)xφ250μm colored fiber, international standard color code (YD/T 901-2001), and 12 circular chromatography
Standard Cable Specifications
| Fiber Count | Outer Diameter (mm) | Weight (kg/km) | Max. Tensile Force (N) | Min. Bending Radius (mm) | ||
| Short term | Long term | Short term | Long term | |||
| 2 | 1.5 ± 0.10 | 3.0 | 80 | 40 | 20D | 10D |
| 4, 8, 12 | 3.0 ± 0.15 | 8.0 | 150 | 80 | 20D | 10D |
| 24 | 4.2 ± 0.3 | 31 | 300 | 160 | 20D | 10D |
Cable Length and Tolerances
| Length and Tolerance Requirements | |
| Length (m) | Tolerance (mm) |
| L≤ 5 | ±50 |
| 5 ＜ L ≤ 50 | ± 1% |
| L＞50 | ± 1000 |
Technical Drawing
Order Information
1. Connector Brand:
SENKO, US CONEC, etc.
2. Connector Loss:
Standard Loss or Low Loss
3. Connector End A-Connector End B:
MPO or MTP / PC or APC, Male or Female
4. Cable Jacket:
LSZH, PVC, OFNR, OFNP, etc.
5. Cable Diameter:
2.0mm, 3.0mm, 3.6mm, 4.5mm, 5.0mm, and 5.5mm Round Cable, Bare Ribbon Fiber, or Flat Ribbon Cable
6. Fiber Count:
4, 8, 12, 24, etc.
7. Fiber Type:
G.652D, G.657A2, OM1, OM2, OM3, OM4, OM5, etc.
8. Cable Length:
1 to 999 meters
9. Polarity:
Type A, Type B, Type C
Connector Brand, Connector Loss,
Connector End A - Connector End B,
Cable Jacket, Fiber Count, Fiber Type, Cable length,
Polarity
Example:
MTP Pre-terminated Patch Cables,
US CONEC Brand, Standard Loss,
MTP/PC Male to MTP/PC Female,
Aqua LSZH, 3.0mm, 8 Cores, OM3, 10 meters,
Type A
