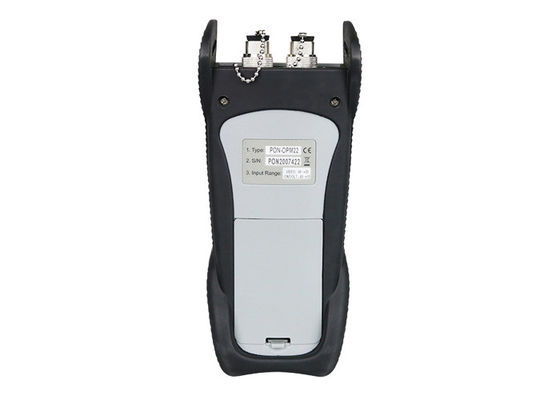

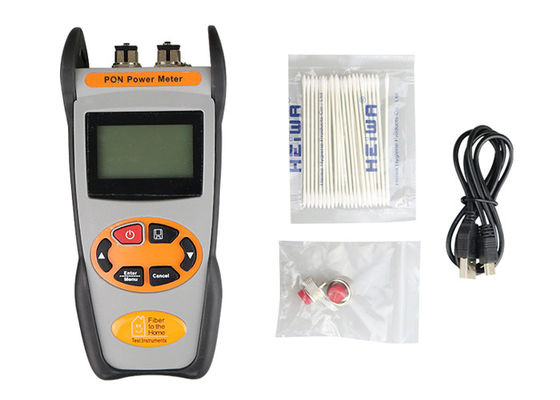

G/EPON Passive Network 1310/1490/1550nm Wavelength Simultaneous Testing Optical PON Power Meters with Data Storage

Optical PON Power Meters

1310/1490/1550nm

Simultaneously Display

Optical Communications Test Applications

--- FTTx PON acceptance test

--- FTTx PON fault isolation

Description

The PPM22 series Optical PON Power Meter is used for testing FTTx PON fiber optic communications systems.

Common uses include live acceptance testing during service turn-up, and fault isolation during subsequent maintenance, particularly when an ONT/ONU has failed.

It is connected in-line on a live system and simultaneously displays the power of all 3 operational PON wavelengths, including the return signal power.

The PPM22 handheld in-line PON Power Meter is ideal for measuring power in a typical live BPON/EPON/GPON FTTx communication link. This feature-rich instrument makes for easy pass/fail results storage and reporting. Stable readings inspire user confidence. The clear sunlight readable and backlit display is combined with simple operation, to ensure good quality testing. The instrument features rugged construction, moisture resistance, rubber holster, and captive connector dust caps. The meter displays dBm, xW, and dB. The resolution is 0.01dB. A separate reference for each λ can be stored. Pass/Fail display is available, and Pass/Fail value is user definable. The saved 3-λ test data with timestamp can be downloaded from the unit onto PC via USB connection using the Data Management Software.

Features

* Compact, rugged & light-weight

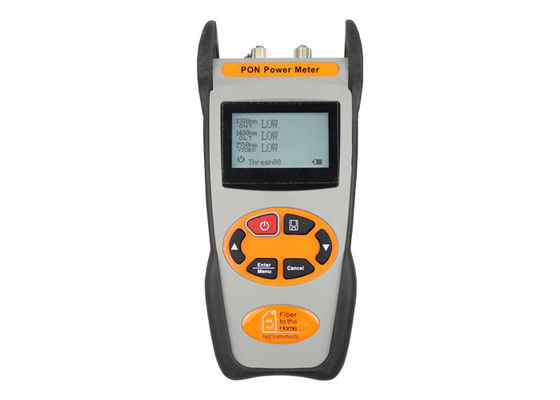

* Large, sunlight readable LCD display

* Simultaneously measurement & display of BPON/EPON/GPON and RF Video signals - voice, data, and video – in-line testing 1490, 1550, and 1310nm

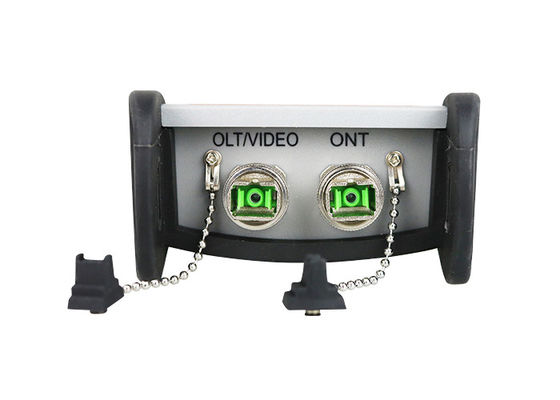

* Two-port pass-through all wavelengths, Downstream OLT signal (1490 nm), Downstream RF video signal (1550 nm)

* Used in Burst mode measurement of 1310nm upstream, Upstream BPON ONT signal for up to 622 Mbit/s, as per ITU 983 (A, B, C), Upstream EPON and GPON ONT signal for up to 1.25 Gbit/s, as per ITU 984 and IEEE 802.3ah

* Pass/Fail displays

* Convenience for threshold setting, which can be set on the tester

* Offers up to 10 different threshold sets in total

* Internal memory for 500 3-λ tests with timestamp

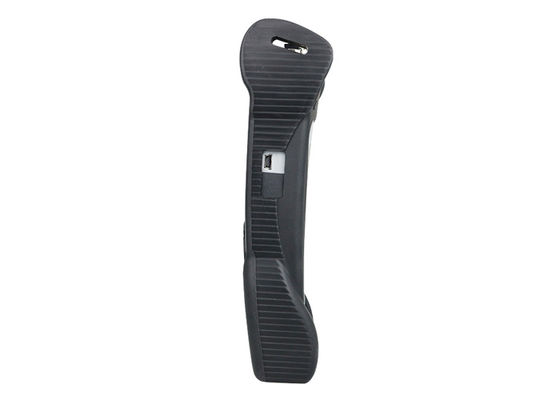

* Saved test data downloadable to PC using Data Management Software through its USB interface

* User self-calibration can be retrieved in the computer through the software.

* Power saving design with backlight, 10 minutes Auto-off function can be activated or deactivated with keypad operation

* Facilitates service-activation testing and troubleshooting

PPM Software

* Download testing data in the meter to a PC via USB

* Download/Upload threshold settings to the meter

* Calibration

Specifications


Note 1: Full Width at Half Maxima (FWHM)

Note 2: At calibration conditions


Typical Connect

Order Information

1. Optical Interface (OLT & ONU):

N: Normal Switchable SC & FC Adapter Caps

P: Premium Switchable SC & FC Adapters

2. Polishing:

U: UPC

A: APC

3. Visual Fault Locator (Optional)

1mW, 10mW

4. Interface (VFL):

L: FC Adapter Cap & Universal 2.5mm push-pull adapter

X: FC, SC Switchable Adapter Caps & Universal 2.5mm push-pull adapter


Samples:
