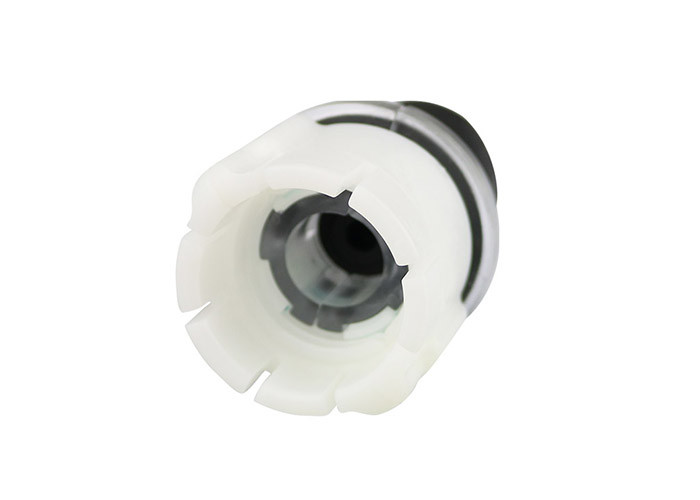

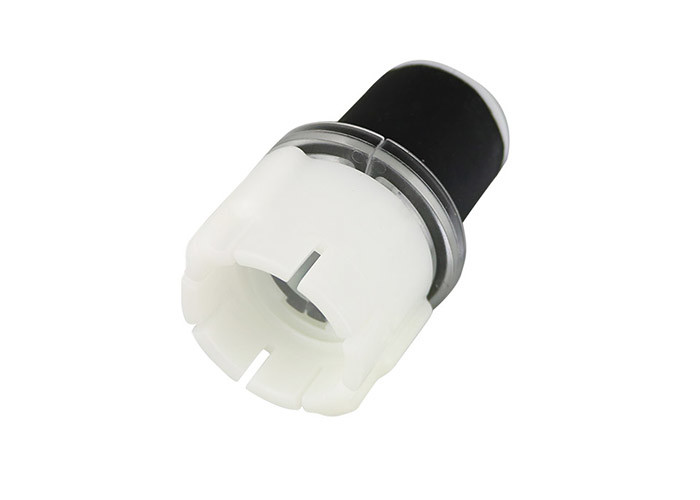

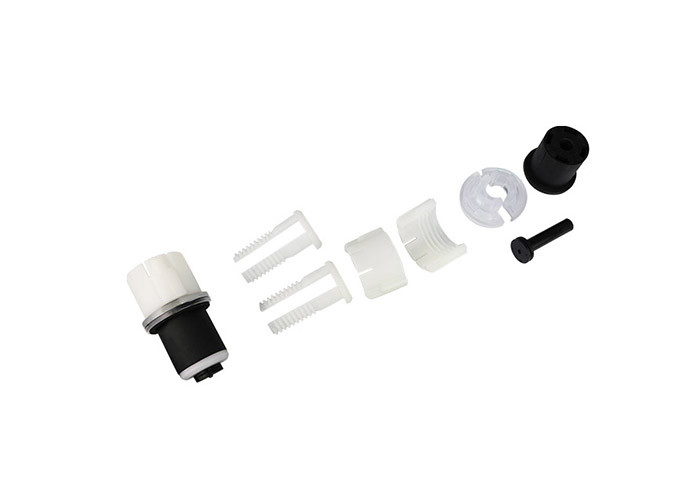

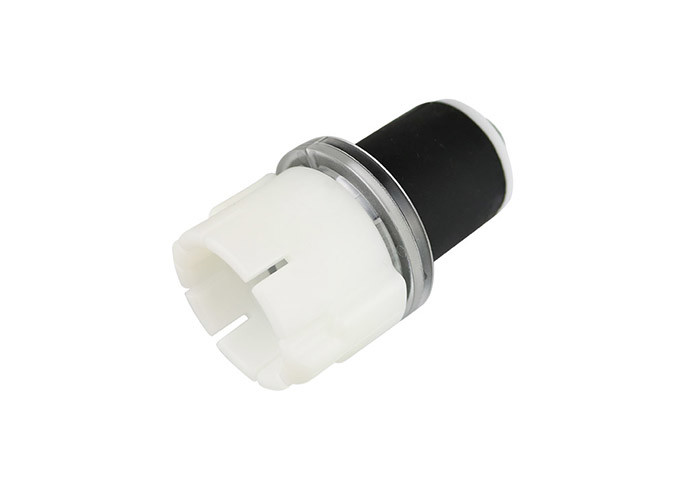

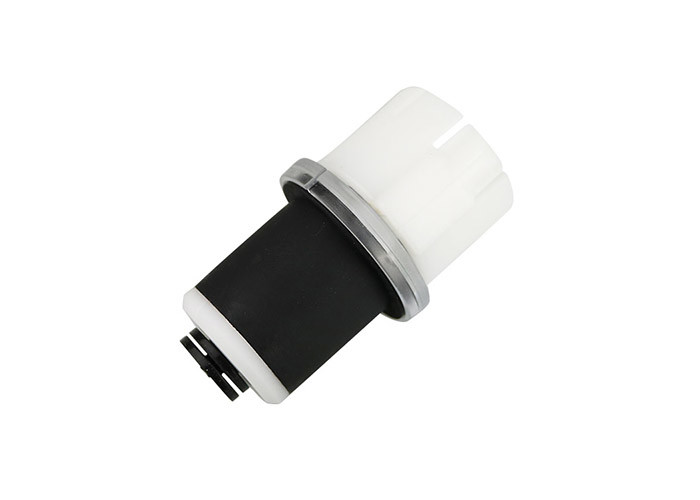

Fiber Optic Simplex Micro duct Plug

Microduct Connectors & Sealing

Sealing Plugs for Small Diameter Ducts

Fiber Optic Divisible Simplex Duct Plug

Description

Fiber Optic Simplex plugs effectively seal conduits containing one cable. Originally designed for applications involving fiber optic cable placement in subduct, this product is ideal for sealing around coax or twisted pair cable in small diameter conduits. These plugs are retrofittable, removable, and reusable.

Proper sealing around cable in conduits and subducts is important to prevent the costly flooding of buildings and sedimentation of the area around the cable. These easily removable and reusable devices facilitate the

redistribution of cable slack by ensuring a clear raceway around outside plant cables.

Features

• Material Type: Polyacetal

• Sealant Type: Silicon

• Watertight and airtight

• Simplex installation around in-place cables

• Seals all types of innerduct

• Easy to retrofit

• Wide cable sealing range

• Installs and removes by hand

Note:

When selecting a F.O. DSDP-plex plug determine the inside diameter of the duct and select the range of plugs. Determine the outside diameter of the cable (or inner-duct) and select the correct plug in the range. Make sure you know the minimum internal diameter of the duct. Some ducts quoted at 50 mm internal diameter (nominal) might be only 48mm. Also, given the outside diameter, determine the minimum O.D. and the maximum wall thickness and calculate the minimum I.D. The actual cable (or inner-duct) diameter must be determined. A quoted cable diameter of 15 mm might be anywhere between 14 and 16 mm, depending on the manufacturer.
