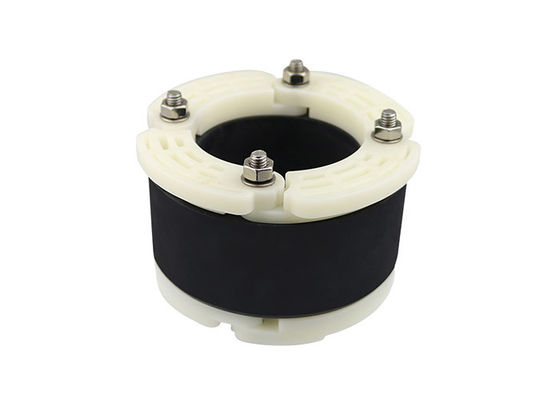

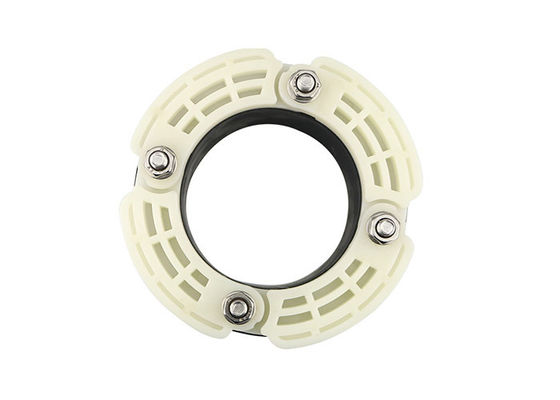

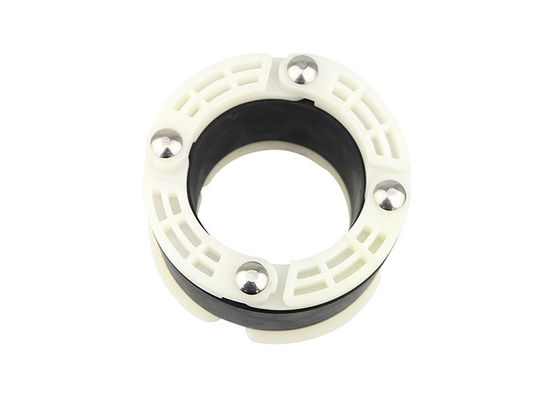

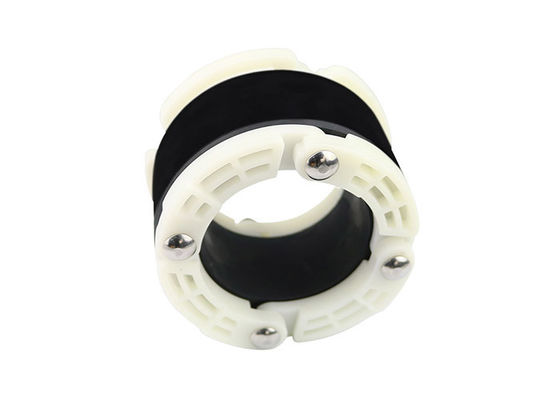

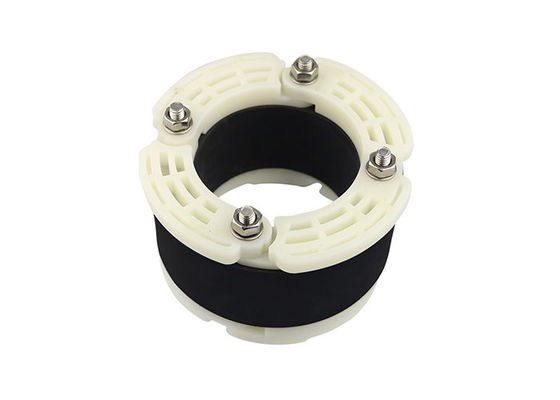

Fiber Optic Simplex Micro duct Plug Entry Seals with Coated Metal or Plastic Compression Plates

Microduct Connectors & Sealing

Simplex Entry Seals

Single Port Sealing Devices

Description

Simplex entry seals effectively seal around and support conduits and cables in through penetration openings or core drilled penetrations, such as building entrances or conduit openings. Simplex entry seals prevent leakage around conduits and cables entering structures of all kinds. Because of their split design, these plugs

are retrofittable, removable, and reusable.

The service life of cable, splices, manhole hardware and electronics can be increased when contact with moisture is reduced. Underground structures can be accessed more quickly and easily when they are isolated and sealed from the inflow of water.

Simplex plugs feature standard sized fasteners made of stainless steel, easily installed with widely available tools, and are sized to fit the most commonly used core-drill bits, conduits, and conduit termination fittings.

For sealing around objects with diameters smaller than those specified, please contact our representative for more information.

Features

• Water-tight and air-tight

• Simple installation around in-place cables

• Excellent conduit or cable support

• Stainless steel fasteners

• Ideal for manholes, buildings and cabinets

When selecting a Simplex Plug:

1. Determine the inside diameter of the duct and the outside diameter of the cable or inner duct and select the range of plugs.

2. If the diameter of the cable or inner duct is smaller than the specified range, use a Bushing Sleeve to build up the cable or inner duct diameter. To select the correct Bushing Sleeve, please contact our representative for more information.

Order Information

 More footprint types are available, please contact us for more information.
