Fiber Optic Triplex Micro duct Plug Entry Seals

Microduct Connectors & Sealing

Triplex Duct Plugs

Multi-Port Sealing Devices for Duct Cable Networks

Description

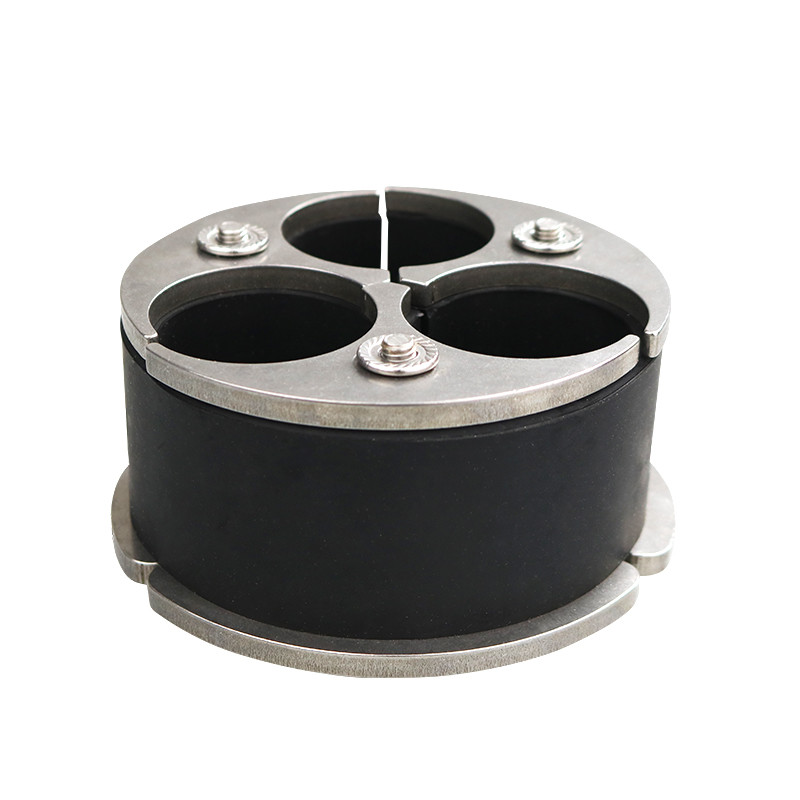

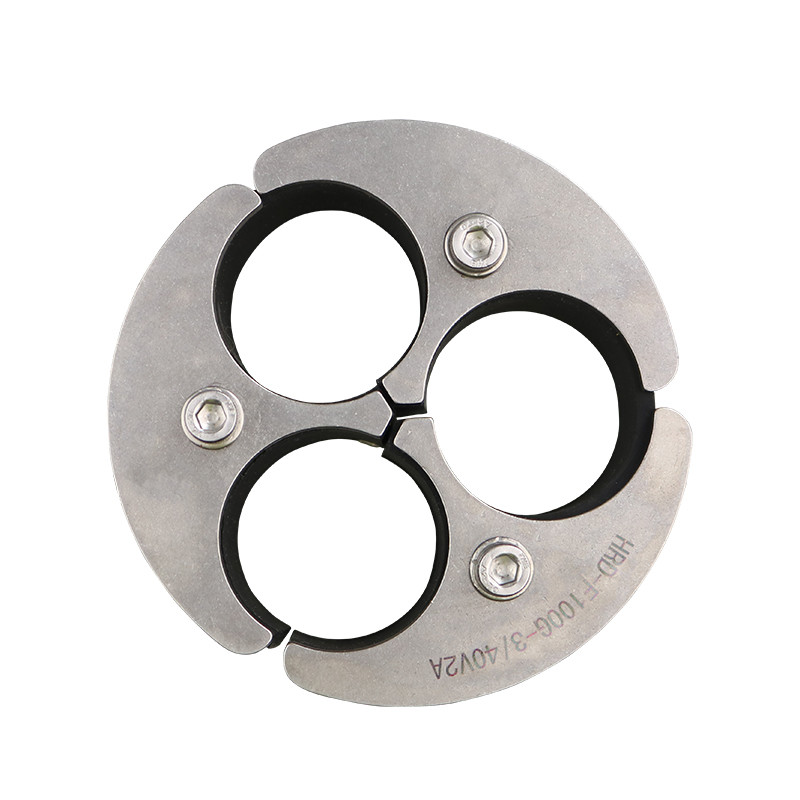

Triplex duct plugs are split plugs for sealing around, organizing, and supporting up to three or four subducts, pipes, or cables. The plugs are designed for use in round openings such as conduits, conduit fittings, and core-drilled wall penetrations. Effective long-term water-tight and air-tight seals, these products also prevent mud, backfill, and slurry from entering handholes, manholes, and buildings during the construction process.

The service life of cable, splices, manhole hardware, and electronics can be increased when contact with moisture is reduced. Flooded underground structures are accessed more quickly when they are isolated from the ingress of water, mud, and slurry.

Features

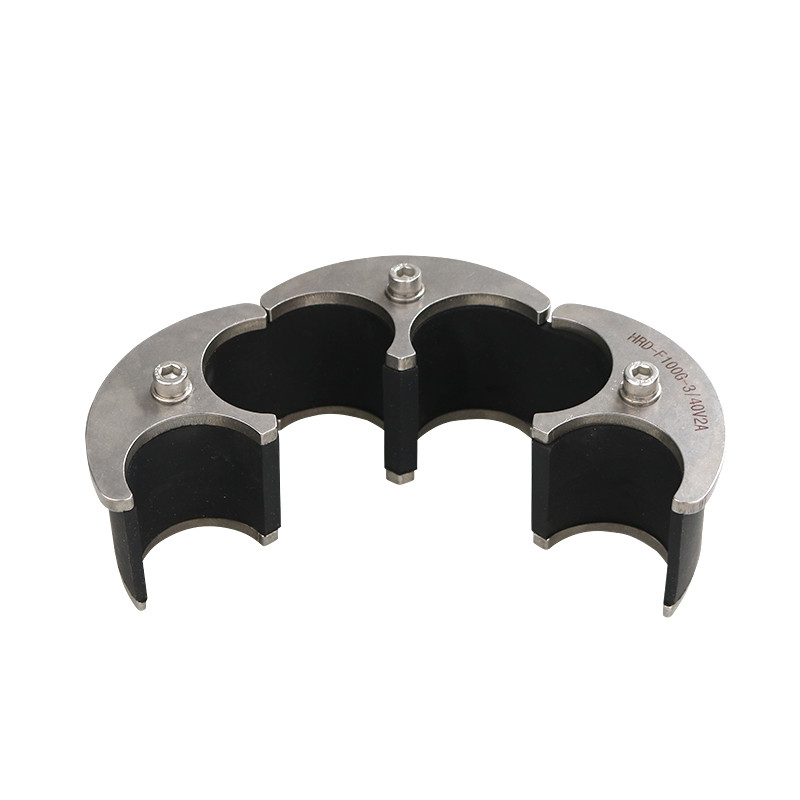

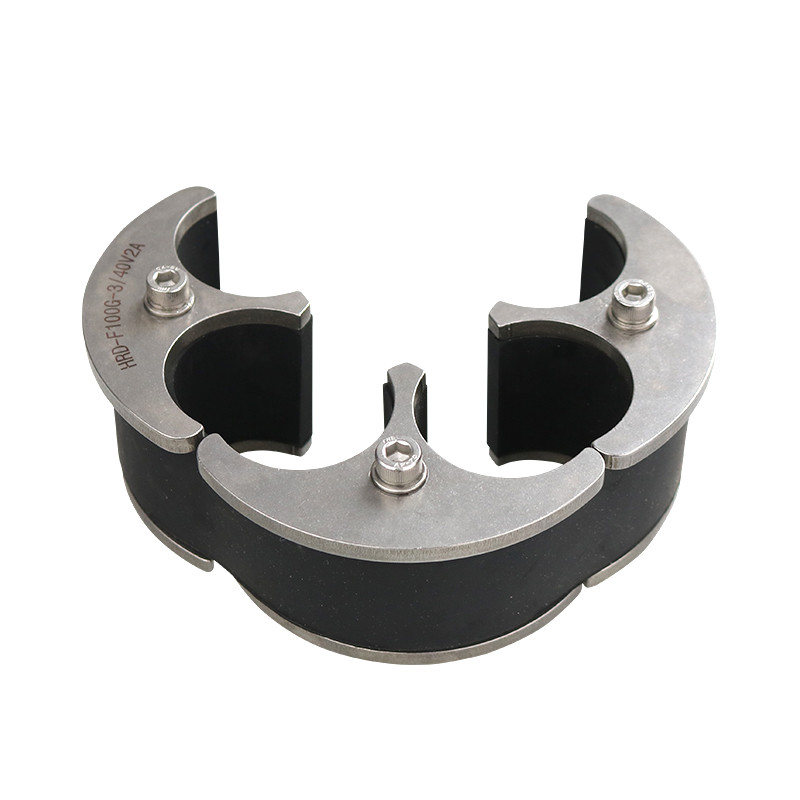

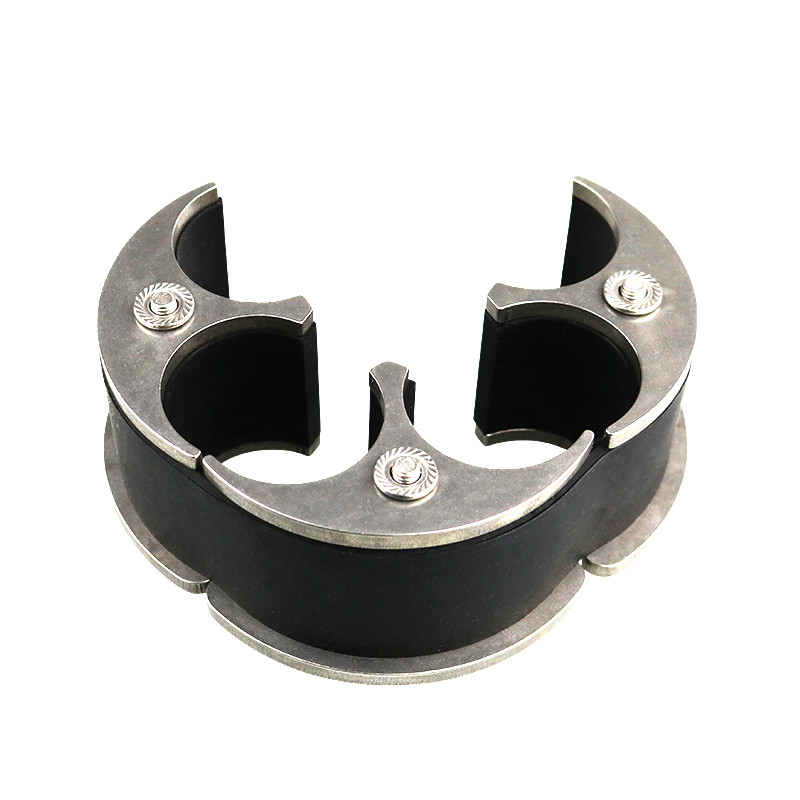

• Split design for retrofitting without disassembly

• Anchor and organize subducts or multiple duct systems

• Eliminate duct-edge abrasion to cables

• Expandable gasket allows for expansion and contraction of cables or subducts without leakage

• Excellent for supporting cables at the tops of risers

When selecting a Triplex Plug:

1. Determine the inside diameter of the duct and select the range of plugs.

2. Determine the outside diameter of the cable (or inner duct) and select the correct plug in the range.

3. If the diameter of the cable (or inner duct) is below the specified range, select a plug with a Bushing Sleeve, please contact us for more information to select a correct duct plug.

4. Any unused ports in the plug can be blocked off using a Hole Plug.

Order Information

* More types, such as Material (Polyacetal/SUS304L), Sealant Type (Silicon/EPDM/NBR), 4-hole are available,

please contact us for more information.
