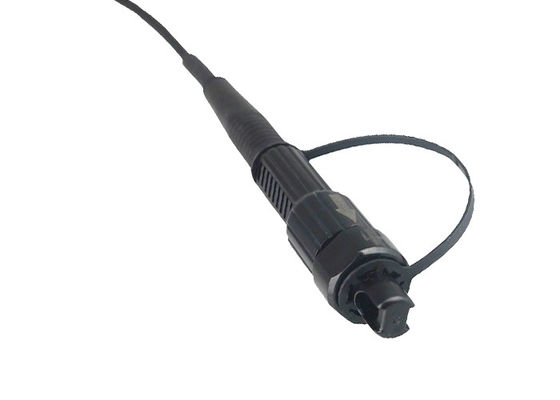

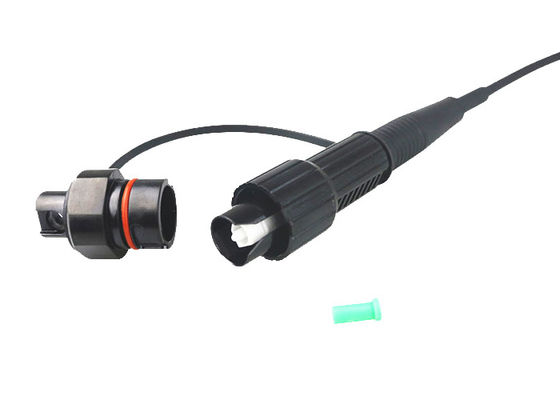

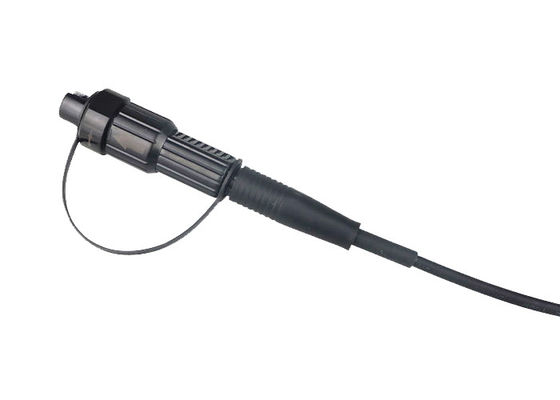

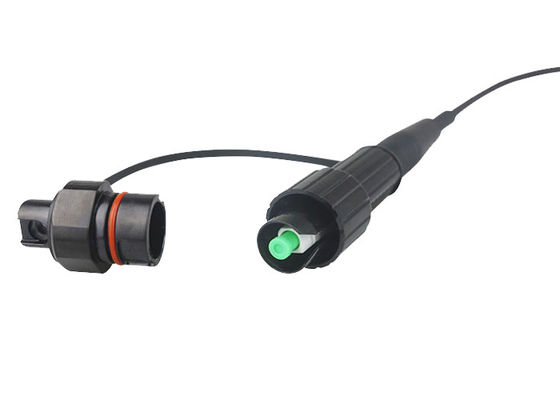

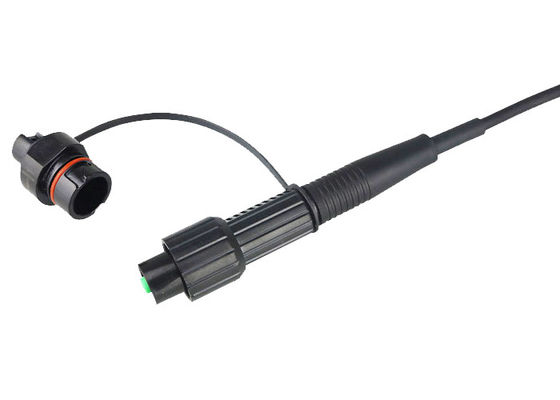

Outdoor FTTA Water-proof Mini-SC/APC Reinforced Cable Assemblies for Harsh Environment Interconnect
| مكان المنشأ | شنغهاي |
|---|---|
| اسم العلامة التجارية | Yogel |
| إصدار الشهادات | RoSH |
| رقم الموديل | ميني إس سي/إيه بي سي |
| الحد الأدنى لكمية | 1 |
| الأسعار | negotiable |
| تفاصيل التغليف | أكياس PE الداخلية، الكرتون الداخلي، الكرتون الخارجي |
| وقت التسليم | 5-8 أيام عمل |
| شروط الدفع | L/C ، T/T ، Western Union |
| القدرة على العرض | 200,000 مجموعة في الشهر |
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| نوع الألياف | وضع واحد G.657A2 | عدد الألياف | Simplex |
|---|---|---|---|
| موصل | SC/APC | الطول الموجي | 1270/1310/1490/1550/1577/1625 نانومتر |
| فقدان الإدراج | .300.30 /0.50 ديسيبل، IEC 61300-3-4 الطريقة ب | خسارة العودة | ≥ 60 ديسيبل، IEC 61300-3-6 الطريقة الأولى أو ما يعادلها |
| طول | 30 مترا أو حسب الطلب | سترة | LSZH |
| قطر الكابل | 3.0 إلى 4.8 ملم دائري أو 5.3x2.0 ملم كابل إسقاط مسطح | طلب | مركز البيانات/FTTX/LAN وشبكة WAN/CATV/شبكة الاتصالات |
منتوج وصف
Harsh Environment Interconnect
FTTA Long Haul System Water-proof Connectors
Outdoor Mini-SC/APC Reinforced
Cable Assemblies
Description
Mini-SC/APC reinforced connector is a small water-proof SC simplex connector designed for outdoor harsh environment interconnect. It is made of PEI material, which is a special plastic type resistant to high and low temperature, acid and alkali corrosion, and ultra-violet. Up to IP67 level, the unique screw mount interface design is compatible with HW equipment ports. It can be used as assembly of 3.0 to 4.8mm simplex round cable or FTTH flat drop cable.
Features
- Low insertion loss & High return loss
- Connectors compliant with Telcordia GR-326, IEC 61754
- The cable fulfills 1301-TOL 405 9009
- Mechanical and environmental tests in accordance with IEC 60794 -1-2
- RoHS compliant
Applications
- Multi-purpose Outdoor
- Fiber optic communications in harsh environments
- HW water-proof fiber equipment with SC ports
- Remote wireless base station
- FTTx solutions
Dimensional Diagrams
1. SC/APC Simplex Cable Assemblies
2. Product Structure
| No. | Designation | Description |
| 1 | Cable |
Outdoor Optical Cable, G657A2, Single-mode, 1 Core with 0.9 mm Fiber, OD 4.8 mm, Black LSZH |
| 2 | Transition | Heat Shrinkable Tube, Black |
| 3 | Protective Hood | Flexible Protective boot for strength relief |
| 4 | Connector | SC/APC Simplex for Single-mode Fiber |
| SC Inner Core | Inner Housing for SC Connector, White | |
| 5 | Dust-proof Cap | Dust-proof for connector ferrule |
| 6 | Cable Assembly Cap | Protective Water & Dust-proof Cap while transporting |
Fiber Structure
| Standards | ITU G.657 A2 / IEC60793-2-50 B6_a2 |
| Cladding Diameter | 125 ± 0.7 μm |
| Coating Diameter (Uncolored) | 245 ± 7 μm |
| Concentricity Error Core / Cladding | ≤ 0.5 μm |
| Concentricity Error Cladding / Coating | ≤ 12.0 μm |
| Cladding Non-Circularity | ≤ 1.0 % |
| Coating Non-Circularity | ≤ 6.0 % |
Fiber Requirements
| Cable Cut-Off Wavelength λcc | (nm) | ≤ 1260 |
| Polarization Mode Dispersion | (ps /√km) | ≤ 0.2 |
| Zero Dispersion Wavelength λo | (nm) | 1300 - 1324 |
| Zero Dispersion Slope S0 at λo | (ps/nm2•km) | ≤ 0.092 |
| Attenuation Typical, (In Cable) | 1310 / 1550 nm (dB/km) | ≤ 0.35 / ≤ 0.21 |
| Attenuation Maximum, (In Cable) | 1310 / 1550 nm (dB/km) | ≤ 0.40 / ≤ 0.25 |
| Chromatic Dispersion | 1310 / 1550 nm (ps/nm•km) | ≤ 3.5 / ≤ 18.0 |
| Bending Loss | 1550 nm, R = 7.5 mm (dB, 1 turn) | ≤ 0.5 |
| 1550 nm, R = 10 mm (dB, 1 turn) | ≤ 0.1 | |
| 1550 nm, R = 15 mm (dB, 10 turn) | ≤ 0.03 |
Cable Structure
Cable Specification
| Item | Specifications | |
| Fiber Count | 1 | |
| Fiber type | 9/125 (G.657A2) | |
| Strength member | Aramid yarns | |
| Tight-buffered Fiber | Tight buffer color | White |
| Tight buffer material | PVC | |
| Tight buffer diameter | 0.9±0.05mm | |
| Sub-unit Cable | Sub-unit color | White |
| Sub-unit material | LSZH | |
| Sub-unit diameter | 2.9±0.1mm | |
| Jacket | Jacket color | Black |
| Jacket material | LSZH | |
| Cable diameter | 4.8±0.2mm | |
| Cable weight(kg/km) | 25 | |
| Min. bending radius(mm) | 10D | |
| Attenuation (dB /km) | ≤0.4at1310nm,≤0.25at1550nm | |
| Short tension(N) | 450 | |
| Short crush(N/100mm) | 3000 | |
| Operation temperature | -40 to +80 ℃ | |
Connector Requirements
| Item | Specifications | |
| Type | SC Inner Core (without Green Housing) | |
| Color | Body / Cap | White / Green |
| Polishing | APC | |
| Insertion Loss | Reference / Random | ≤0.30 /0.50 dB, IEC 61300-3-4 method B |
| Return Loss | ≥ 60 dB,IEC 61300-3-6 Method 1 or Equivalent | |
| End Face Geometry | Radius | 7 - 25 mm, IEC 61300-3-16 |
| Vertex Offset | < 50 μm, IEC 61300-3-15 | |
| Fiber Protrusion | ≤ 50 nm, IEC 61300-3-23 | |
| Fiber Withdrawal | ≤ 50 nm, IEC 61300-3-23 | |
Mechanical Specifications
| Item | Test Standard | Limit Value | Test Result |
| Tensile Strength | IEC 60794-1-2 E1A | ≥ 300 N (Long Term) | Pass |
| Installation Test | 1/102 64-COH 109 2099 | Dwell Time: 24h | Pass |
| Crush Resistance |
IEC 60794-1-2 E3 ≥500mm, 60s, 3 Times |
3000 N (100mm Plate) 4000 N (25mm Steel Mandrel) |
No Damage to Sheath No Damage to Sheath |
| Bending Radius | IEC 60794-1-2 E11A |
≥20mm (Cable) ≥10mm (Fan Out) |
Pass Pass |
| Pulling |
IEC 61300-2-4 0.5 Meter from Connector |
End A≥100N (Straight), 120s ≥50N (Right-angle), 120s End B≥50N (Straight), 120s |
Insertion Loss Variation ≤ 0.2 dB Final Value ≥ 50 dB IP65 |
| Torsion |
IEC 61300-2-5 0.5 Meter from Connector |
≥ 15N (Straight), 25 Cycles ± 180° |
Insertion Loss Variation ≤ 0.2 dB Final Value ≥ 50 dB |
| Compression Force (Ferrule) | IEC 61300-3-22 | 5 - 8 N | Pass |
| Temp. Cycling |
IEC 61300-2-22 Cable Coiled Loosely, Diameter ≥ 600mm(500m) Diameter ≥ 300mm(3m) |
-40°C to +75°C Dwell time: 6h (500m) Dwell time: 1.5h (3m) 12 cycles |
Insertion Loss Variation During ≤ 0.5 dB, After ≤ 0.4 dB Final Value ≥ 50 dB |
Environment Specifications
| Operating Temperature | -40°C to +80°C |
| Installation Temperature | -15°C to +60°C |
| Storage Temperature | -40°C to +75°C |
| Water Penetration | Pass, IEC 60794-1-2 F5B |
| Vertical Flame Spread | Pass, IEC 60332-3-24 |
| Connectors Flame | UL 94 V-0 |
| UV Resistance | Pass, ISO 4892-3 |
Cable Length and Tolerances
| Length and Tolerance Requirements | |
| Length (m) | Tolerance (mm) |
| L≤ 5 | ±50 |
| 5 ＜ L ≤ 50 | ± 1% |
| L＞50 | ± 1000 |
Banned and Restricted Substances
RoHS 2002/95/EC Compliant
Options
HW Mini-SC Adapters (Can be used on NAPs and Telecommunication Equipment)
Compatible with HW Mini-SC Cable Assemblies (Adapters and Assemblies can only be used in PAIRS)
Order Information
Connector End A / Water & Dust Proof- Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
Example:
SC/APC-SC/APC, Mini Reinforced Assemblies
Black LSZH, 4.8mm, Simplex, G.657A2, 35 meters
