Outdoor Mini-SC/APC Water-poof Reinforced 01-type Field Installable Fast Connectors for Harsh Environment Interconnect

Description

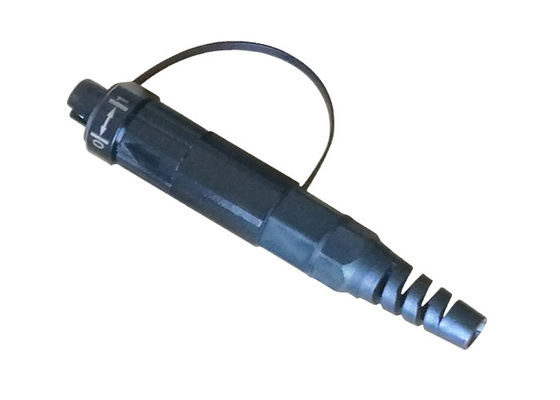

Mini reinforced housing assembly with SC Field installable fast connector is a new design outdoor water-proof fiber optic cable assembly compatible with HW Mini-SC connector /adapter. It’s mainly used for FTTH outdoor installation. It’s small and easy to be installed with IP67 level. Mini-SC fast connector is an excellent solution with HW device and do not need terminated the connector in factory. It can be field assembled easily to save time and benefit the project.

For SC Field Installable Connectors:

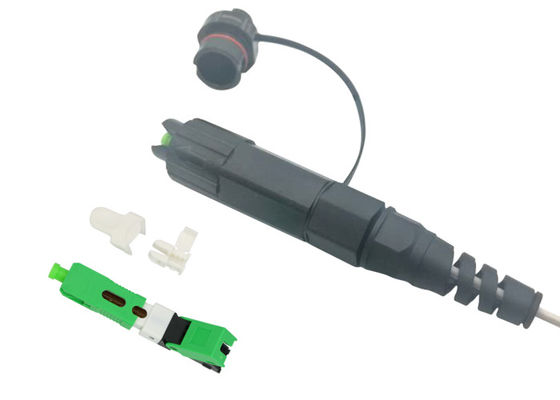

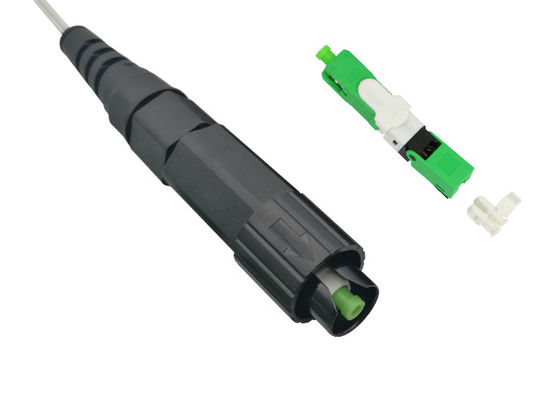

Field Assembly Optical Connector (FAOC), also refer to as Field Installable Connector or Optical Fast Connector, is designed to enables easy and quick fiber termination on site with unique V-groove mechanical splice technology and double locking system, therefore providing a significant support for users in the construction of FTTH network.

Features

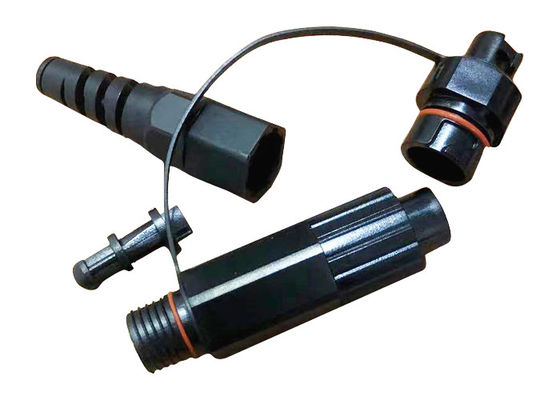

Mini Reinforced Housing Assemblies 01-type:

• Cost effective solution for indoor or outdoor termination
• Compatible with HW Mini-SC adapters used on NAPs or Equipment
• Up to IP67 level, water, dust proof and corrosion resistant
• Mechanical test in accordance with IEC 61754-4
• RoHS and REACH materials compliant

SC Field Installable Connectors:

• Low insertion loss & High return loss
• Easy and Quick assembly (within 2minutes) without special tools
• No need electric power (Fusion Splicer, etc.), polishing, epoxy or adhesive on site
• Reliable assembly with assembly guide jig (Drop Cable Holder)
• Available splice inspection with visible light source or optical power meter on site
• Available to re-assembly process after Termination more than 5 times
• Used for 3.0x2.0mm or 5.3x2.0mm FTTH flat drop cable and 3.0mm round cable

Applications

• FTTH & Outdoor drop cable Terminal End
• Harsh Environment
• FTTA BBU RRU
• Data, Video & Voice Transmission
• Optical Fiber Access Network of Wireless Base Station

Specifications

Connector Termination Principle

Based on mechanical splice technology on site

Accessories

Name	Model No.	Description	Picture
Drop Cable Holder	DCH21-76	Also refer to as guide jig or fixed-length cutting template, used to strip the fiber buffer coating with one side and fixed-length cutting with the other side
User Manual		For FAOC9103-2 Connectors

Notes:

1. Standard Configuration: 1pcs Drop Cable Holder and 1pcs User Manual for 10pcs Connector, if you need more, please contact our sales representation.
2. The width of Drop Cable Holder is 16mm, compliant with Fujikura brand fiber cleaver standard, so it can be compatible with almost all the fiber cleavers in market, including Sumitomo brand fiber cleaver standard.
3. The default Fixed Cutting Length of Drop Cable Holder: Buffer Coating Length - 21mm, Bare Fiber Length after Cutting – 7.6mm, total fiber length without jacket is 28.6mm (Buffer fiber + Bare fiber), this is the most important part, if the length changes, the splicing result maybe fail. *
4. More details about how to use these accessories, please check the User Manual.

Order Information

Options

HW Mini-SC Adapters (Can be used on NAPs and Telecommunication Equipment)

Compatible with HW Mini-SC Cable Assemblies (Adapters and Assemblies can only be used in PAIRS)
