Compact Point-of-Entry Module Fiber Entry Boxes
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| البعد | 145x89x16 ملم | مادة | ABS+PC |
|---|---|---|---|
| جبل نوع | مثبت على الحائط | لون | أبيض |
| مدخلات الكابلات | دعم منتصف المدى غير المقطوع | قطر الكابل | كابل إسقاط 2.0 مم، 3.0 مم، 5.0 مم أو 7.0 مم |
| إعدادات | 1 قطعة SC أو 1 قطعة محول LC مزدوج | درجة حرارة التشغيل | -10 درجة مئوية إلى +50 درجة مئوية |
منتوج وصف
Fiber Entry Boxes
Compact Point-of-Entry
Description

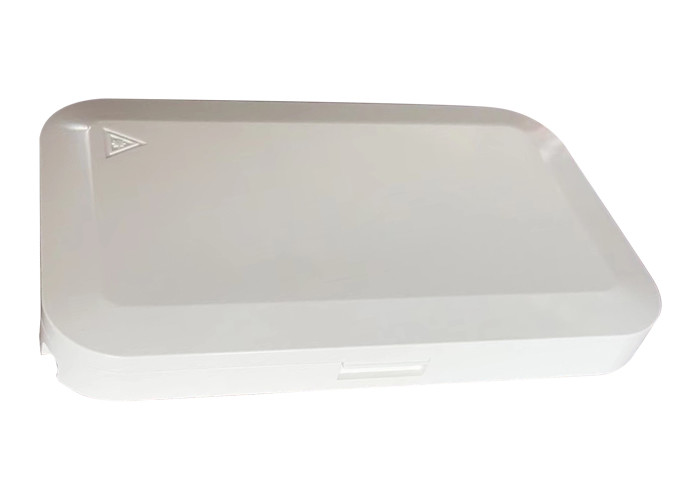

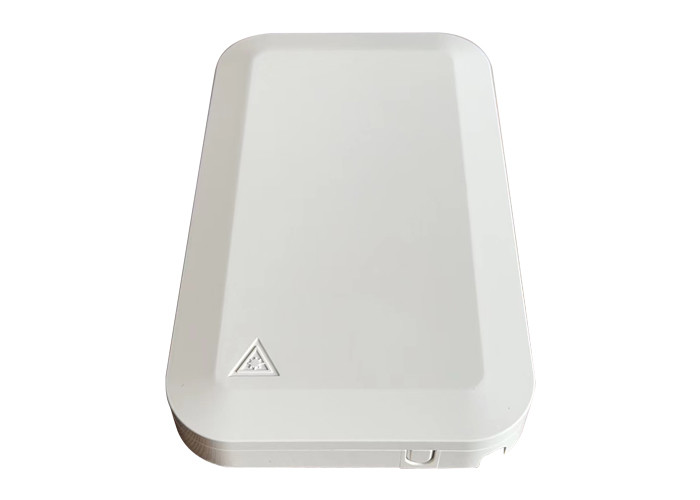

The Fiber Entry Box is a slim profile, compact termination box at the heart of the FTTx MDU Tenant Connection solution. Manufactured from a flame-retardant, low-smoke, zero-halogen and impact-resistant polymer, the box mounts to wall surfaces with two screws (provided).

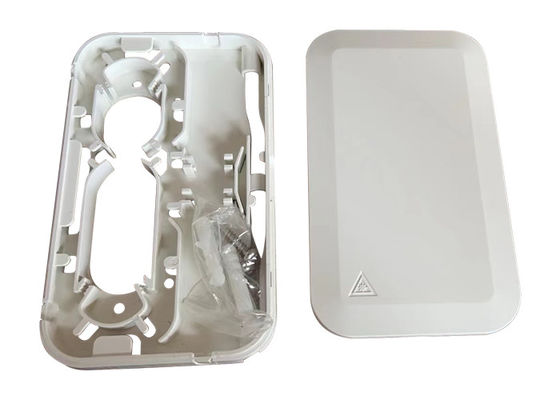

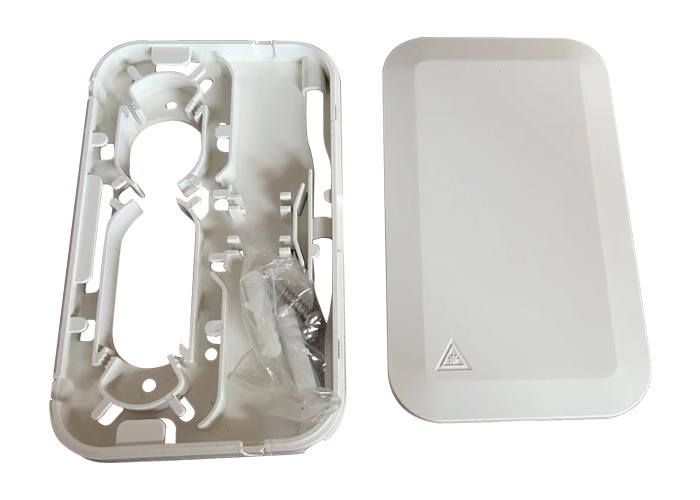

The Fiber Entry Box is positioned over the Distribution or Drop Cable and provides retaining features to hold the cable securely. After window-cutting the cable, individual 900μm or 250μm fibers can be pulled back and coiled into the box.
The Fiber Entry Box features all the necessary components to connect the subscriber to the distribution or Drop cable and offers a range of termination options including fusion splice, field-fit fast connectors and terminated drop cables. It even allows for pushing the fiber from the Fiber Entry Box to the Customer Terminal / Optical Network Terminal (ONT).
Features
- Drop cable can enter at rear or bottom of the box
- Tamper-resistant front cover
- Slim compact profile
- Cable retention features
- Multiple termination options
-
--- Fusion splice-on
--- Mechanical splice
--- Field Installable
--- Pre-connectorized drop cable
- Supplied with wall fixings and connection accessories
Applications
- Multi-dwelling units
- Commercial offices
- Schools and campuses
- Hotels and resorts
Specifications
| Model No. | FPEM-WS/ADT-1A |
| Dimension (L x W x H) | 145x89x16mm |
| Installation | Wall mounting (Indoor) |
| Color | White |
| Material | PC+ABS |
| Cable Entries | Supporting Uncut Mid-span |
| Cable Diameter | 2.0mm, 3.0mm, 5.0mm or 7.0mm drop cable |
| Configuration | 1pcs SC or 1pcs Duplex LC adapter |
| Packing Information | GW.: 0.5KG |
| Operating Temp. | -10°C to +50°C |
Accessories
| Item | Size | QTY | Remark |
| Metal bolt | 20*φ5mm | 2 | Wall mount kits |
| Plastic expansion tubes | 20*φ5mm | 2 |
Options
| Model No. | Description |
| ADT-SC-SX-Y07-BL | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue |
| ADT-SC-SX-Y07-GR | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Green |
| ADT-SC-SX-Y07-BG | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Beige |
| ADT-SC-SX-Y07-AQ | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Aqua |
| ADT-SC-SX-Y07-VT | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Violet |
| ADT-LC-DX-T11-BL | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Blue |
| ADT-LC-DX-T11-GR | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Green |
| ADT-LC-DX-T11-BG | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Beige |
| ADT-LC-DX-T11-AQ | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Aqua |
| ADT-LC-DX-T11-VT | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Violet |
| ASC-NC-LJX-001-DA2-0100 |
SC/APC-NC, LSZH, 0.9mm, Yellow Color, G.657A2, 1 Meter, Color-coded 900μm Pigtail |
| USC-NC-LJX-001-DA2-0100 |
SC/UPC-NC, LSZH, 0.9mm, Yellow Color, G.657A2, 1 Meter, Color-coded 900μm Pigtail |
Samples
Description: Fiber Entry Box (FPEM-WS/ADT-1A) Full-loaded with
- 2 pieces SC/UPC-NC, LSZH, 0.9mm, Yellow Color, G.657A2, 1 Meter, Color-coded 900μm Pigtail (USC-NC-LJX-004-DA2-0100)
- 1 pieces SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue (ADT-SC-SX-Y07-BL)
*Note: Cable and Adapters Not Included
