NID (Network Interface Device) Fiber Optic Distribution Boxes
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| البعد | 191x120x44 ملم | مادة | ABS+PC |
|---|---|---|---|
| لون | رمادي | جبل نوع | مثبت على الحائط |
| الأعلى. قطر الكابل | الأعلى. الإدخال = φ12 مم و7.5 مم، الحد الأقصى. الإخراج = φ4.5 مم أو 3.1 × 2.0 مم كابل إسقاط | إعدادات | 4 قطع SC أو 4 قطع محول LC مزدوج أو 1x4 PLC صغير |
منتوج وصف

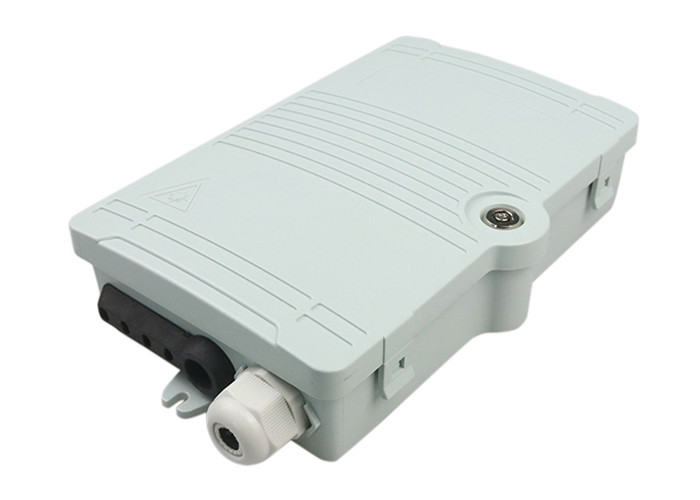

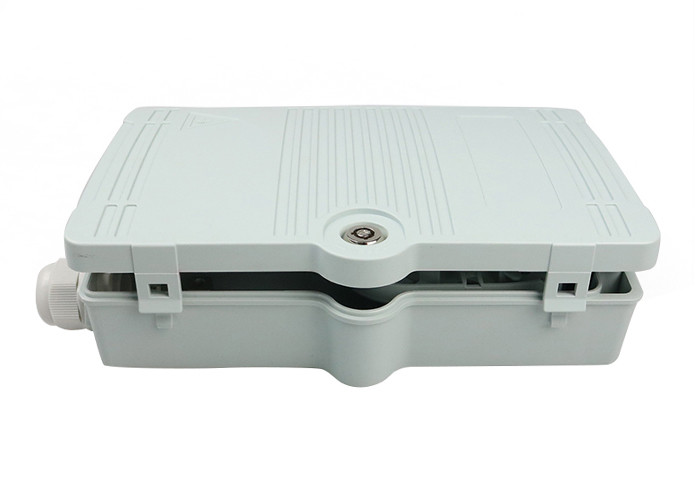

Fiber Optic Distribution Boxes
NID (Network Interface Device)
Description

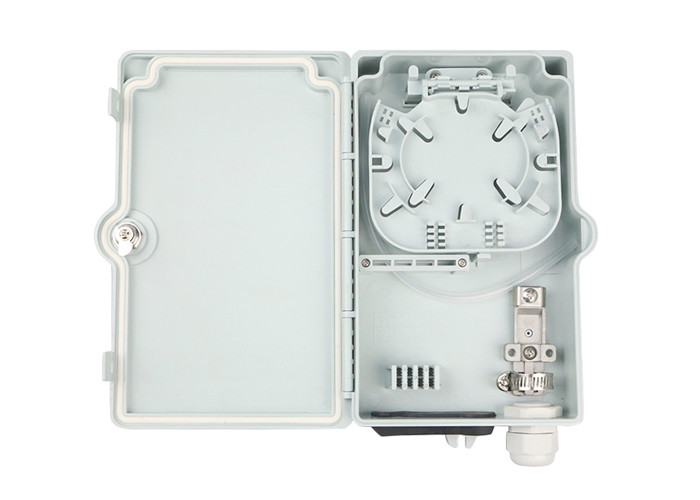

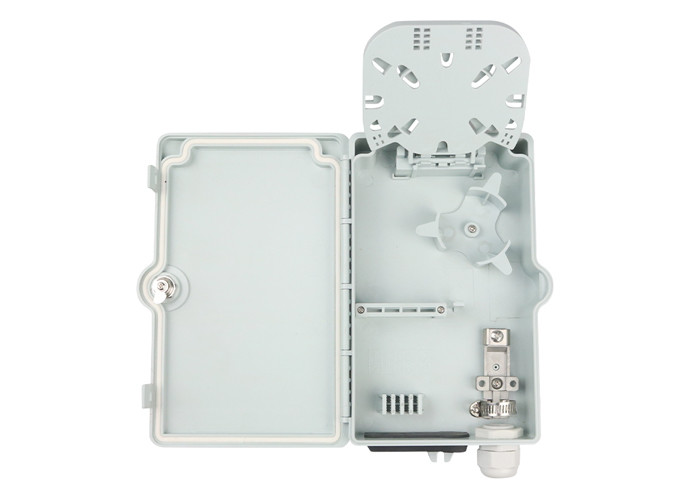

Fiber Optic Network Interface Devices (NID) FDB-030-WG/ADT-4A are designed to provide protection for fiber optic connectors and splices in indoor or outdoor environments (IP65 Rated). Each enclosure has a built in, swing-out mini splice tray and a bulkhead panel with SC footprint adapter ports. Cable access ports feature built in weather-tight grommets that allow for easy cable installation.
Holding up to 4 subscribers, it is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features

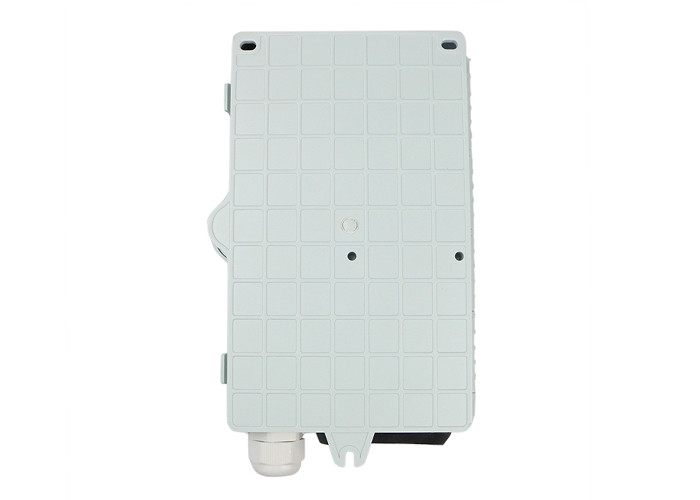

- For Wall Mount Applications
- Built In Swing-out Mini Splice Tray (4 Splices)
- Fiber Management Rods & Fiber Bend Radius Control more than 40mm
- Suitable for Fusion or Mechanical Splicing
- 1x4 PLC Splitter can be Installed as an Option
- Bulkhead Panel for 4 SC Simplex/LC Duplex Adapters (SC Footprint)
- IP65 Rated, Weather Tight Grommets
- 6 Entry Ports (2 Distribution Cable & 4 Drop Cables)
- Locking Door with Key
- Suitable for Outdoor or Indoor Cable
Applications
- FTTx solutions
- Drop cable and indoor cable connection
- Indoor cable storage and distribution
Specifications
| Model No. | FDB-030-WG/ADT-4A |
| Dimension (L x W x H) | 191x120x44mm |
| Installation | Wall mounting (Outdoor & Indoor) |
| Color | Grey |
| Material | PC+ABS |
| Cable Entries | Not Supporting Uncut Mid-span |
| Max. Cable Diameter | Max. Input = φ12mm & 7.5mm, Max. Output =φ4.5mm or 3.1x2.0mm drop cable |
| Configuration | 4pcs SC or 4pcs Duplex LC adapter or 1x4 mini PLC |
| Packing Information |
GW.: 17.50KG Qty.: 50pcs MEAS.: 435x365x450mm |
Accessories (Optional)
| Model No. | Description |
| ADT-SC-SX-Y07-BL | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue |
| ADT-SC-SX-Y07-GR | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Green |
| ADT-SC-SX-Y07-BG | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Beige |
| ADT-SC-SX-Y07-AQ | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Aqua |
| ADT-SC-SX-Y07-VT | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Violet |
| ADT-LC-DX-T11-BL | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Blue |
| ADT-LC-DX-T11-GR | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Green |
| ADT-LC-DX-T11-BG | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Beige |
| ADT-LC-DX-T11-AQ | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Aqua |
| ADT-LC-DX-T11-VT | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Violet |
| ASC-NC-LJX-004-DA2-0100 |
SC/APC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs |
| USC-NC-LJX-004-DA2-0100 |
SC/UPC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs |
| PLC-P-104-ASC-CJ-DA2-10-MINI | 1x4, PLC Mini Type Splitter, Color-coded Tube, SM-G.657A2, Input: SC/APC, 0.9mm, 1 Meter, Output: SC/APC, 0.9mm, 1 Meter |
| PLC-P-104-USC-CJ-DA2-10-MINI | 1x4, PLC Mini Type Splitter, Color-coded Tube, SM-G.657A2, Input: SC/UPC, 0.9mm, 1 Meter, Output: SC/UPC, 0.9mm, 1 Meter |
Samples
Description: 4-core NID (FDB-030-WG/ADT-4A) Full-loaded with
- SC/UPC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs (USC-NC-LJX-004-DA2-0100)
- 4 pieces SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue (ADT-SC-SX-Y07-BL)
