FCL-10S Precision True One-step Single and Ribbon Fiber Cleaver

FCL-10S Precision Fiber Cleaver
for Single & Ribbon Fiber
Ture “One-step”


Auto & Precision & Durable







Description

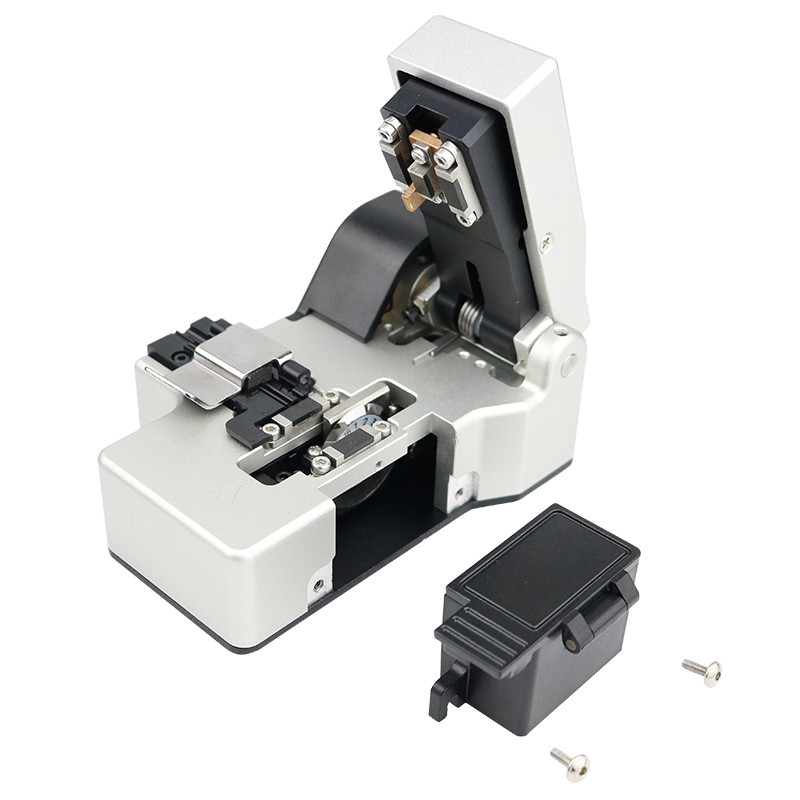

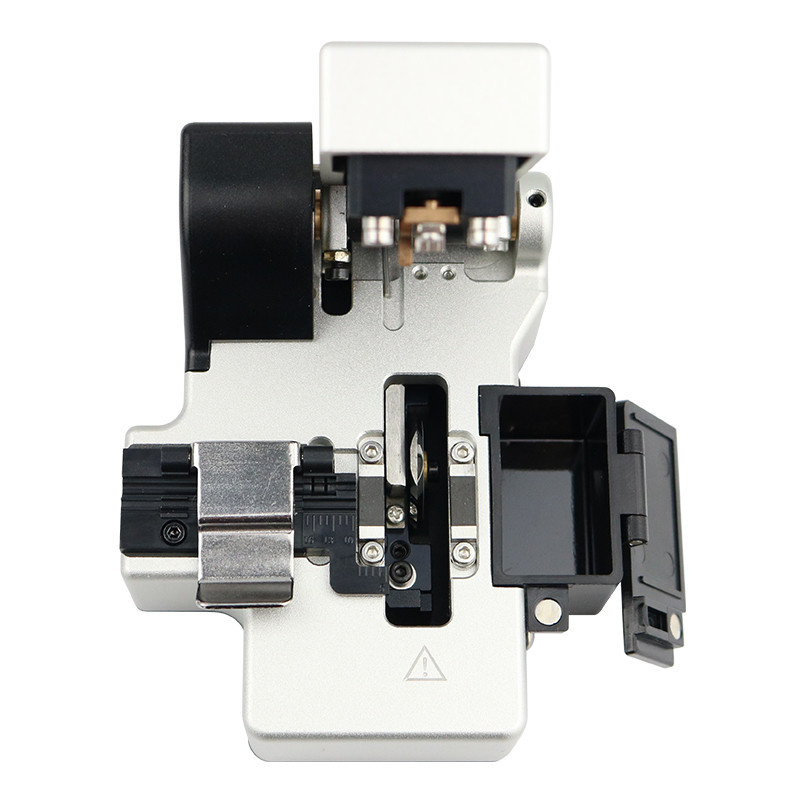

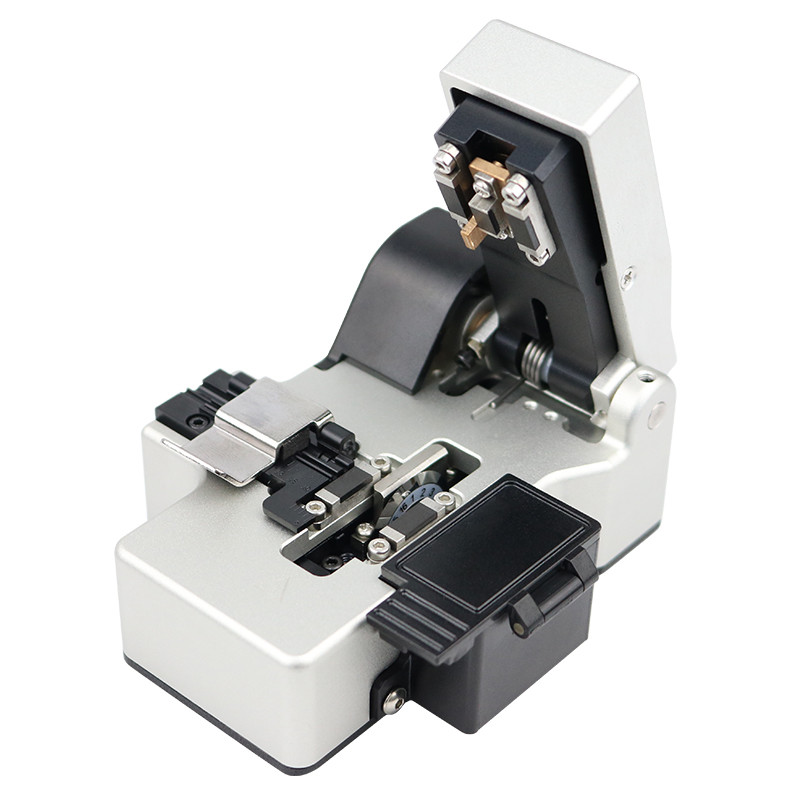

The FCL-10 is a featured benchtop cleaver, press to cut (true “one-step”), simple, and easy to use. FCL-10S which has a fiber scrap/offcut collection box with a magnetic hinged lid (trash can/disposal bin) is also available.

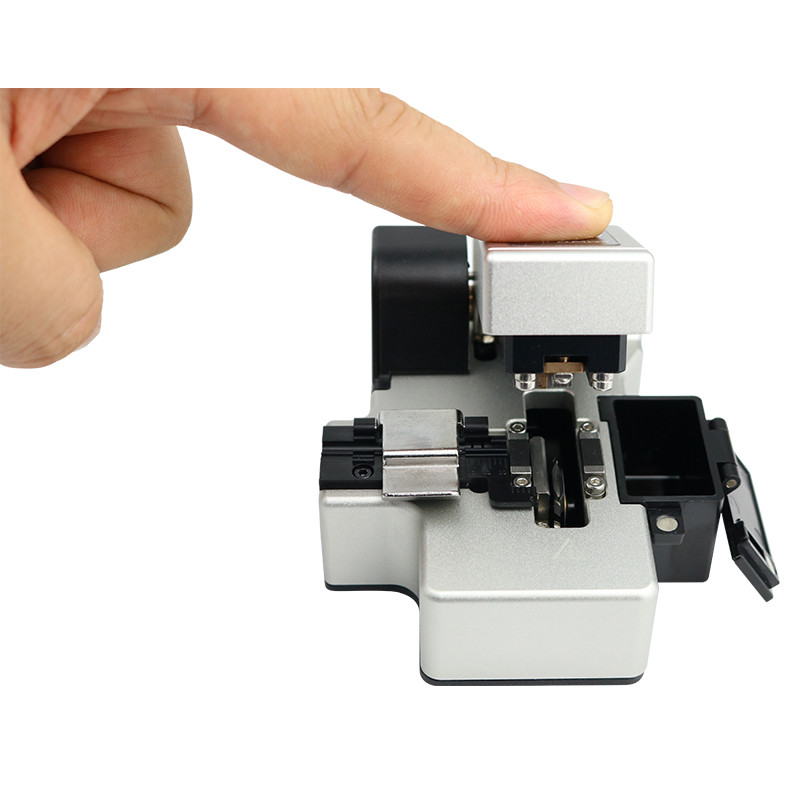

Set the stripped fiber in the cleaver, press down the cutting lever to cut, release the pressure on the cutting lever, a spring force will bring the cutting lever and the sliding blade module all back to its opening position automatically, readies to next “press to cut”, making this a true “one-step” cleaver.
The FCL-10S cleaver is high precision at a low cost, suitable for any job. Compact and ergonomic, precise, and durable.
the FCL-10S is perfect for all cleaving applications from common Fusion Splice, Splice on Connectors & Field Installable Connectors to an emergency fiber restoration.
The FCL-10S cleaves 250um, 900μm, 2.0mm, 3.0mm, and 3.1x2.0 FTTH drop cables with a 2-step process that will fulfill any cleaving requirement.

The blade yields 48,000 single-fiber cleaves or 4,000 12-fiber ribbon cleaves.

The default pre-fitted single fiber holder suits 250um, 900μm, 2.0mm, 3.0mm, and 3.1x2.0 FTTH drop cables.

The Ribbon fiber holders (4, 8 &12 fibers) are available & sold separately. Custom holder size available. Please contact us for details.



Features

• Compact, Ergonomic Design
• High Precision Cleaves with 0.5-degree variance
• Manually blade rotation
• Field serviceable cleaver blade
• Manually stored Fiber Disposal Bin optional


Applications

• Fusion Splicing
• Mechanical Splicing
• Splice on Connectors


Specifications


Note:

*1: Blade life is not guaranteed. It may vary depending on the operating environment. No visual defects on blade edge testing by 300X microscope.


Order Information



Accessories (Options/Consumables)
sold separately



Instruction Manual
