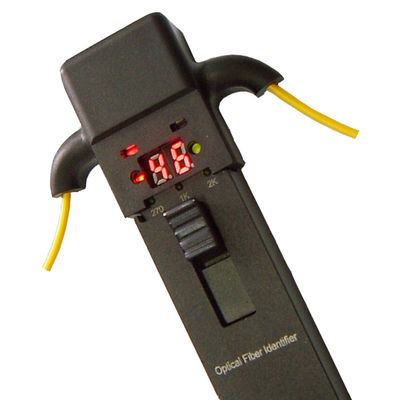

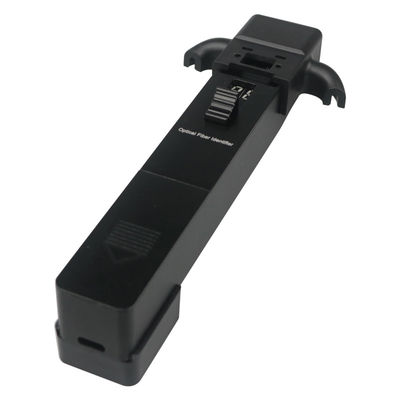

Handheld Optical Fiber Identifier, Standard type with Relative Power Display, w/ 250μm, 900μm, 2.0mm, 3.0mm Adapter Head

Handheld Optical Fiber Identifiers

Standard type with Relative Power Display

Description

The OFI22 family of Optical Fiber Identifiers are rugged, easy-to-use installation and maintenance instruments that identify live fibers by detecting the optical signals being transmitted through them. By utilizing non-destructive macro-bend detection (which does not damage or overstress the fiber), these units eliminate the need to disconnect fiber connectors for traffic verification. When used on jumper cables before they are disconnected ensures vital services are not interrupted.

The Optical Fiber Identifier detects low-frequency test tones at 270 Hz, 1 kHz, and 2kHz for locating individual fibers within a cable. When traffic is present, the probe produces an audible tone and clearly indicates direction by illuminating a direction

indicator LED.

We produce Optical Fiber Identifiers for an array of applications such as basic installation and troubleshooting, display of relative core power, high-power CATV, bend-insensitive fibers, and an extended range model with multiple capabilities.

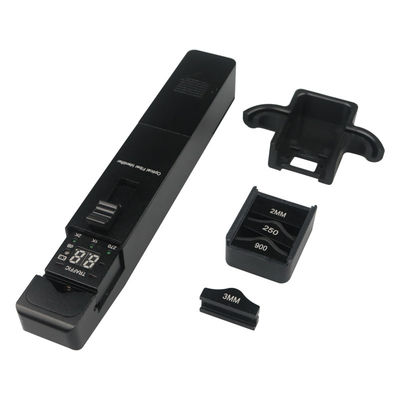

All Optical Fiber Identifiers include a carrying pouch containing three easy-to-use field interchangeable adapter heads for 900μm buffered fiber, ribbon or 250μm coated fiber and 3mm jacketed jumpers.

It's easy to carry and loss can be avoided with a new adaptors box.

Features

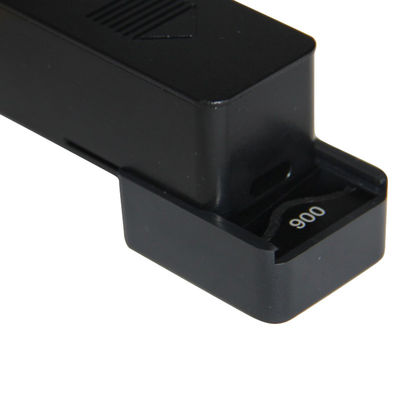

• Accepts 250 µm, 900 µm coated fiber, 2.0mm and 3.0 mm jacketed fiber cable
• Low insertion loss, traffic remains uninterrupted
• Rugged Metal Case - Field-proven lightweight rugged metal housing for years of heavy use.
• 850nm to 1700nm Range - With the use of InGaAs detectors, the unit can be used in single-mode and multimode applications.
• Audible Tone - The unit provides an audible tone in the presence of a fiber optic signal, indicating a tone signal visually and audibly.
• Tone Detection - The OFI can detect 270Hz, 1kHz, and 2kHz tones for easy fiber cable identification
• Core Power Display - Both the OFI can display Relative Core Power which is helpful in identifying bad connectors, splice points, etc.
• LED Indication - LEDs indicate tone detection, Traffic presence, Traffic Direction, and Low Battery.
• Hands-Free-Operation - With an easy-to-use thumb lock, the hands-free operation can be enabled and disabled.
