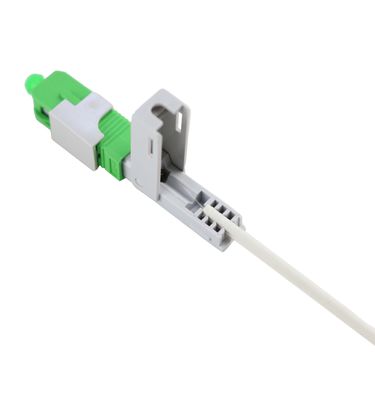

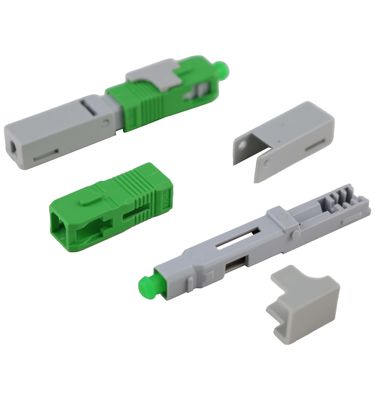

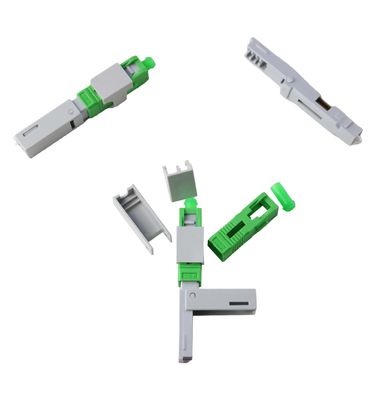

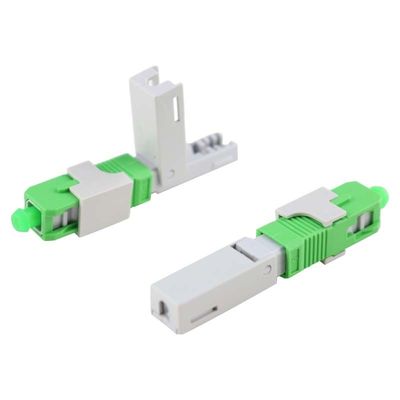

Alligator clip, flank U wedge, SM, 52mm, for drop cable, vertical input, SC/APC Fiber Optic Fast Connectors
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| نوع الموصل | SC/APC | نوع الألياف | الوضع الفردي، G.657 A2 |
|---|---|---|---|
| نوع الكابل المتوافق | كابل إسقاط FTTH مسطح 3.1*2.0 مم/1.6*2.0 مم (نوع القوس أو النوع "8") وكابل مستدير 3.0 مم | الطول الموجي | 1310 نانومتر، 1490 نانومتر، 1550 نانومتر |
| فقدان الإدراج | النوع <0.3 ديسيبل (الحد الأقصى 0.5 ديسيبل) | خسارة العودة | النوع ≧60 ديسيبل (الحد الأدنى 50 ديسيبل) |
| مقاس | 54 × 8.9 × 7.3 ملم (بدون غطاء غبار)، 52 × 8.9 × 7.3 ملم (بدون غطاء غبار) | تركيز الطويق | <1.0μm |
| قوة الشد | ≥20N (ΔIL<0.3dB) |
منتوج وصف
Field Assembly Optical Connector
Model No.: FAOC3102-2
Description
Field Assembly Optical Connector (FAOC), also referred to as Field Installable Connector or Optical Fast Connector, is designed to enable easy and quick fiber termination on-site with unique V-groove mechanical splice technology and double locking system, therefore providing significant support for users in the construction of FTTH network.
Features
- Compatible with factory-assembled conventional standard SC connectors
- Easy and Quick assembly (within 2 minutes) without special tools
- No need for electric power (Fusion Splicer, etc.), polishing, epoxy, or adhesive on site
- Reliable assembly with assembly guide jig (Drop Cable Holder)
- Available splice inspection with a visible light source or optical power meter on site
- Available to re-assembly process after Termination more than 5 times
Specification
| Model No. | FAOC3102-2-ASC | FAOC3102-2-USC | FAOC3202-2-USC |
| Connector type & Polish | SC/APC | SC/UPC | SC/UPC |
| Fiber type |
Single Mode, 9/125μm, 250μm buffer coating, ITU-T G.652D / G.657A standard |
62.5/125μm or 50/125μm OM1, OM2, OM3, OM4 |
|
| Compatible cable type |
3.1*2.0mm/1.6*2.0mm flat FTTH drop cable (Bow type or “8” type) and 3.0mm round cable |
||
| Wavelength | 1310nm, 1490nm, 1550nm | ||
| Insertion loss | Typ.≦0.3dB (Max. 0.5dB) | Typ.<0.2dB (Max. 0.5dB) | Typ.<0.1dB (Max. 0.3dB) |
| Return loss | Typ.≧60dB (Min. 50dB) | Typ.≧50dB (Min. 40dB) | Typ.≧35dB (Min. 22dB) |
| Size | 54x8.9x7.3mm (w/ Dust Cap), 52x8.9x7.3mm (w/o Dust Cap) | ||
| Concentricity of Ferrule | ＜1.0μm | ||
| Inner Diameter of Ferrule | 125.3μm | ||
| Bare fiber fastening strength | ≥5N (ΔIL≤0.3dB) | ||
| Tensile strength | ≥20N (ΔIL≤0.3dB) | ||
| Operating temperature | -40 to 85°C | ||
| Success rate | >98% (for the first time) | ||
| Standard | Compliance with YD/T 2341.1-2011 specifications | ||
| Package |
PE Bag or Blister Box, inner and outer carton, 34x33x21cm and 5.5kg weight for 1000pcs (Reference only) |
||
Accessories
| Name | Model No. | Description | Picture |
| Drop Cable Holder | DCH20-9 | Also referred to as a guide jig or fixed-length cutting template, used to strip the fiber buffer coating with one side and fixed-length cutting with the other side | |
| Cover-open Tool | COT31-FAOC | Used to open the back cover when reassembling | |
| User Manual | For SC/UPC Connector | |
|
| User Manual | For SC/APC Connector | |
Notes:
1. Standard Configuration: 2pcs Drop Cable Holder, 5 pcs Cover-open Tool, and 1pcs User Manual for 100pcs Connector, if you need more, please contact our sales representative.
2. The width of the Drop Cable Holder is 16mm, compliant with Fujikura brand fiber cleaver standard, so it can be compatible with almost all the fiber cleavers on market, including Sumitomo brand fiber cleaver standard.
3. The default Fixed Cutting Length of Drop Cable Holder: Buffer Coating Length - 20mm, Bare Fiber Length after Cutting - 9mm, total fiber length without a jacket is 29mm (Buffer fiber + Bare fiber), this is the most important part, if the length changes, the splicing result maybe fail. *
4. For more details about how to use these accessories, please check the User Manual.
Order Information
| Model No. | Description | Remarks |
| FAOC3102-2-ASC | Alligator clip, flank U wedge, SM, 52mm, for drop cable, vertical input, SC/APC | |
| FAOC3102-2-USC | Alligator clip, flank U wedge, SM, 52mm, for drop cable, vertical input, SC/UPC | |
| FAOC3202-2-USC | Alligator clip, flank U wedge, OM2, 52mm, for drop cable, vertical input, SC/UPC |
