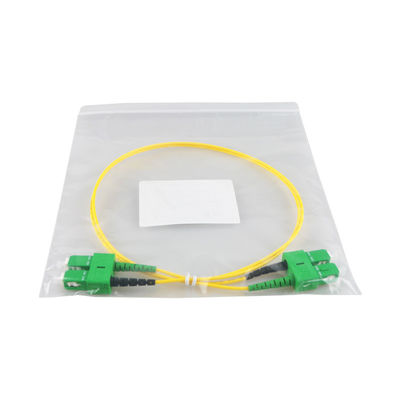

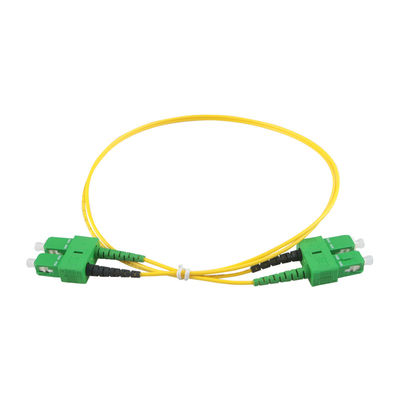

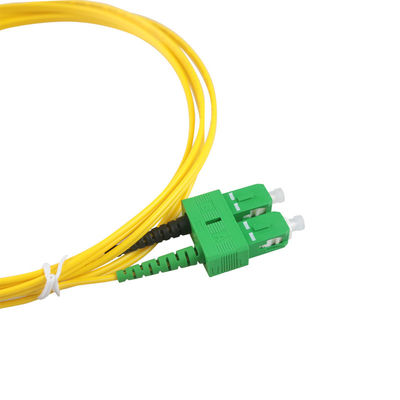

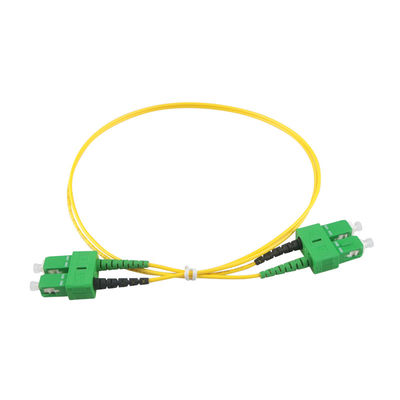

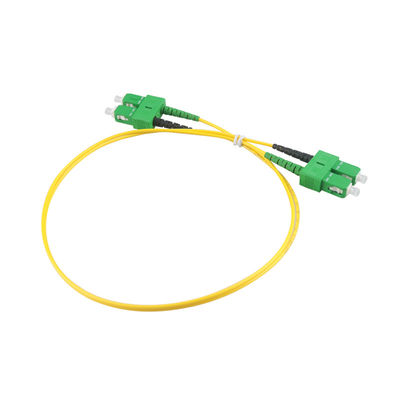

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اختبار الطول الموجي | 1310/1550nm | فقدان الإدراج | اكتب. .150.15 ديسيبل، الحد الأقصى. .30.30 ديسيبل |
|---|---|---|---|
| خسارة العودة | ≥60 ديسيبل | التكرار | .10.10 ديسيبل |
| قابلية التغيير | ≤0.20 ديسيبل | المتانة (1000 تزاوج) | ≤0.20 ديسيبل |
| درجة حرارة التشغيل | -40 ~ + 80 درجة | درجة حرارة التخزين | -40 ~ + 85 درجة |
| نهاية الموصل | SC/APC | سترة الكابل | LSZH |
| قطر الكابل | 2.0mm | عدد الألياف | دوبلكس |
| نوع الألياف | الوضع الفردي، G.657 A2 | طول الكابل | 0.5m |
منتوج وصف
SC Series Cable Assemblies – Patch Cords/Jumpers
Hybrid Always Available
SC Connector Boots
SC Dust Caps/Ceramic Ferrules
Description
Cable assemblies are offered in a variety of combinations. Connectors include SC, FC, ST, LC, E2000, MU, MPO/MTP, SMA, MTRJ, D4, and DIN. 4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, 1.2mm, and 900μm cables in PVC, OFNR, LSZH, OFNP jackets, and G.652D, G.655, G.657A1, G. 657A2 and G.657B3 @ single mode, OM1, OM2, OM3, OM4, and OM5 @ multimode fiber types are available.
We have the patch cords you need to be stocked and on the shelves. Choose from our large inventory of single-mode and multimode patch cords. The Stocked Patch cords are available in the most popular connector combinations. Assembled using reliable and durable ceramic ferrules, you can choose between PC, UPC, and APC polish finishes. Most cable assembly styles are available as either simplex, duplex, or multi-fiber. Multimode cords are available in either 50/125 or 62.5/125 versions.
4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, and 1.2mm cords include an outer jacket with 900μm buffer surrounded by Aramid Yarn.
Features
* Low insertion loss & High return loss
* Connectors compliant with Telcordia GR-326
* Cable compliant with Telcordia GR-409
* Mechanical performance compliant with IEC 61754-4
* RoHS & REACH compliant - Riser, Plenum, and LSZH rated cables available
Applications
* Building interconnections (campus LAN)
* Connector end in optical distribution boxes and termination boxes
* Trunk lines direct to telecommunications closet
* Cross-connect in the outdoor closet
* Distribution connect in central office ODF / MDF
* Fiber patch panels within communications closets
* Links between Internet electronic equipment (SFP module, Switch, OLT, ONU, etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.), and fiber patch panels
Specifications
| Item | Parameter | |||
| Single Mode | Multi-Mode | |||
| PC | UPC | APC | PC | |
| Test wavelength | 1310/1550nm | 850/1300nm | ||
| Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | |||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | ≥35dB |
| Repeatability | ≤0.10 dB | |||
| Changeability | ≤0.20 dB | |||
| Durability (1000 Mating) | ≤0.20 dB | |||
| Operation temperature | -40 ~ +80℃ | |||
| Storage temperature | -40 ~ +85℃ | |||
| Connector End | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||
| Fiber count | Simplex, Duplex, Multi-fiber | |||
| Fiber type | Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm) | |||
| Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125) | ||||
| Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. (Customized) | |||
| Fiber brand | Corning, Sumitomo, Fujikura, YOFC, TFO | |||
| Fire resistant | IEC 60794-2-30 | |||
| Standards Compliant | ROHS, IEC, GR-326 | |||
Connector End Types - (SC Series)
| Type | Reference | Item | Descriptions (Default, Options are available) |
| SC | IEC 61754-4 | Single mode simplex | APC: Green connectors, Green boots |
| UPC: Blue connectors, Blue boots | |||
| Single mode duplex | APC: Green connectors, Green boots | ||
| UPC: Blue connectors, Blue boots | |||
| Multimode simplex | UPC: Grey Connectors, Grey boots | ||
| Multimode duplex | UPC: Grey Connectors, Grey boots |
Dimensional Diagrams - (SC Series)
Cable Components
Cable length of tolerance
| Cable Length of Jumper tolerance requirement | |
| Overall length (L) (m) | length of tolerance(cm) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%xL/-0 |
Optical Characteristics
| Item | Parameter | Reference | |
| Single-mode | Multimode | ||
| Insertion loss | Typ.≤0.15 dB, Max.≤0.30 dB | Typ.≤0.15 dB, Max.≤0.30 dB | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
End-Face Geometry (3D Interferometer)
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° Max. |
End-Face Quality
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 (SM) | None | None | IEC 61300-3-35:2015 |
| 0 to 65 (MM) | None | None | ||
| B: Cladding | 25 to 115 (SM) | None | None | |
| 65 to 115 (MM) | None | None | ||
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 mating | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
Order Information
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
Example:
SC/UPC-SC/APC, with Duplex Clips,
LSZH, 2.0mm, Duplex, G.657A2, 5 meters
Indoor patch cord
