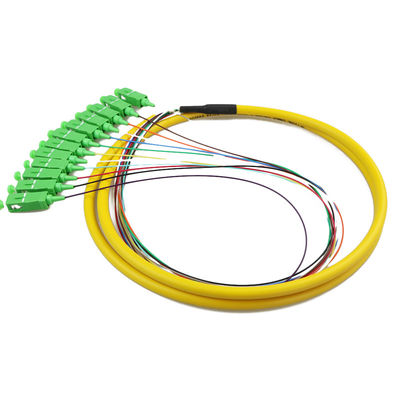

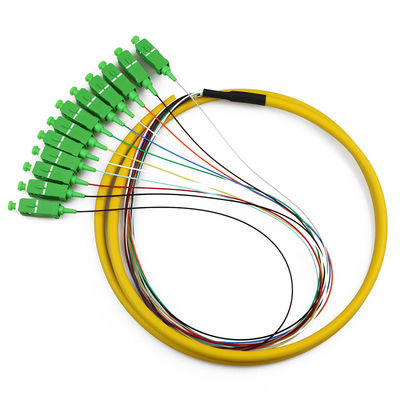

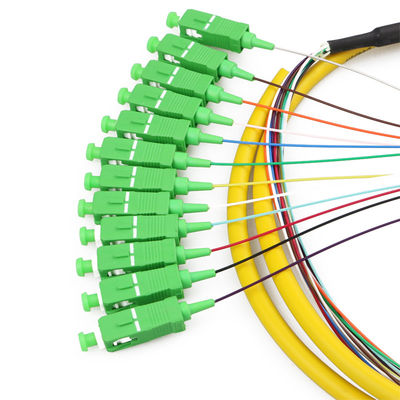

SC/APC-NC, LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter Color-coded Distribute Style Pigtail Packs
| مكان المنشأ | شنغهاي الصين |
|---|---|
| اسم العلامة التجارية | Yogel or OEM |
| إصدار الشهادات | ISO9000 ,ROHS,CE |
| رقم الموديل | أسك-NC-LJX-012Y-DA2-0100 |
| الحد الأدنى لكمية | 1 |
| الأسعار | Negotiate |
| تفاصيل التغليف | 1 قطعة/حقيبة داخلية ، 100 قطعة/الحزمة ، كرتون |
| وقت التسليم | 3-5 أيام بعد الاستبداد |
| شروط الدفع | Western Union ، Moneygram ، T/T ، L/C |
| القدرة على العرض | 300000 قطعة/شهر |
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم المنتج | حزم ضفيرة نمط التوزيع المرمزة بالألوان | نوع الموصل | SC/APC |
|---|---|---|---|
| اختبار الطول الموجي | 1310/1550nm | فقدان الإدراج | اكتب. .150.15 ديسيبل، الحد الأقصى. .30.30 ديسيبل |
| خسارة العودة | ≥60 ديسيبل | التكرار | .10.10 ديسيبل |
| قابلية التغيير | ≤0.20 ديسيبل | المتانة (1000 تزاوج) | ≤0.20 ديسيبل |
| نهاية الموصل | SC/APC | سترة الكابل | LSZH |
| قطر الكابل | 0.9 ملم / 7.0 ملم | عدد الألياف | 12 الألياف |
| نوع الألياف | الوضع الفردي، G.657 A2، 9/125 ميكرومتر | طول الكابل | 1.5m |
| درجة حرارة التشغيل | -40 ~ + 80 درجة | درجة حرارة التخزين | -40 ~ + 85 درجة |
منتوج وصف
SC Series Cable Assemblies
Color-coded Distribution Style Pigtail Packs
Product Description
Distribution Style Pigtails Packs feature a durable outer jacket ensuring strength and protection during installations. The distribution fiber fans out into 900µm color-coded tight buffered fibers and are color coded to TIA-598-A industry standards.
Pigtails are available in Single mode or Multimode, 2, 4, 6, 8 or 12 fiber packs, and your choice of stock connectors (SC, LC, ST, FC). They are designed for high fiber count splicing applications. All pigtails feature low insertion loss, and low back reflection and are made with brand fiber. The standard total length of 1.5 meters (w/ 0.5 meters fan out).
2 Fiber Buffer Colors – Blue, Orange
4 Fiber Buffer Colors – Blue, Orange, Green, Brown
6 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White
8 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White, Red, Black
12 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
*Note: Customized Color-coded Combination is Available.
Features
* Low insertion loss & High return loss
* 900um Tight Buffer Pigtails, 1.5 Meter Standard Length (Optional)
* Color Coded to Industry Standards
* 2, 4, 6, 8, or 12 Fiber
* Connectors Available: SC, LC, ST, FC
* Fiber Available: SM and MM OM2, OM3, OM4
Applications
* Connector end in optical distribution boxes and termination boxes
* Distribution connect in central office ODF / MDF
* Fiber patch panels within communications closets
Specifications
| Item | Parameter | |||
| Single Mode | Multi-Mode | |||
| PC | UPC | APC | PC | |
| Test wavelength | 1310/1550nm | 850/1300nm | ||
| Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | |||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | ≥35dB |
| Repeatability | ≤0.10 dB | |||
| Changeability | ≤0.20 dB | |||
| Durability (1000 Mating) | ≤0.20 dB | |||
| Operation temperature | -40 ~ +80℃ | |||
| Storage temperature | -40 ~ +85℃ | |||
| Connector End | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000/UPC, E2000/APC, MU/UPC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/UPC, SMA/PC, D4/UPC | |||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||
| Cable diameter | 0.9mm | |||
| Fiber count | Simplex | |||
| Fiber type | Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm) | |||
| Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125) | ||||
| Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. (Customized) | |||
| Fiber brand | Corning, Sumitomo, Fujikura, YOFC, TFO | |||
| Fire resistant | IEC 60794-2-30 | |||
| Standards Compliant | ROHS, IEC, GR-326 | |||
Connector End Types - (SC Series)
| Type | Reference | Item | Descriptions (Default, Options are available) |
| SC | IEC 61754-4 | Single mode simplex | APC: Green connectors, Green boots |
| UPC: Blue connectors, Blue boots | |||
| Single mode duplex | APC: Green connectors, Green boots | ||
| UPC: Blue connectors, Blue boots | |||
| Multimode simplex | UPC: Grey Connectors, Grey boots | ||
| Multimode duplex | UPC: Grey Connectors, Grey boots |
Dimensional Diagrams - (SC Series)
SC 900μm Simplex Pigtail
Cable Components
Cable length of tolerance
| Cable Length of Jumper tolerance requirement | |
| Overall length (L) (m) | length of tolerance(cm) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%xL/-0 |
End-Face Geometry (3D Interferometer)
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° Max. |
End-Face Quality
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 (SM) | None | None | IEC 61300-3-35:2015 |
| 0 to 65 (MM) | None | None | ||
| B: Cladding | 25 to 115 (SM) | None | None | |
| 65 to 115 (MM) | None | None | ||
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 mating | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
Order Information
Connector End A – NC (Non-connector),
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
Example:
SC/APC-NC,
LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter
Color-coded Distribution Style Pigtail Packs
Samples:
| Model No. | Description | Remarks |
| ASC-NC-LJX-012Y-DA2-0100 |
SC/APC-NC, LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter Color-coded Distribute Style Pigtail Packs |
