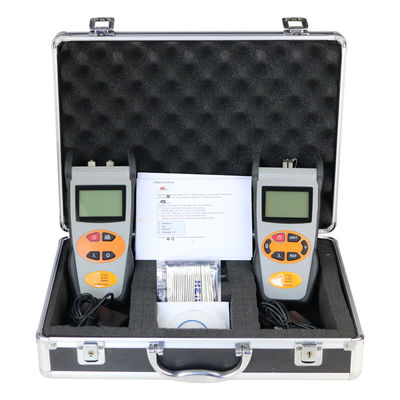

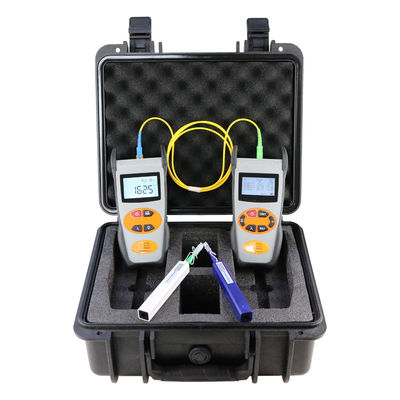

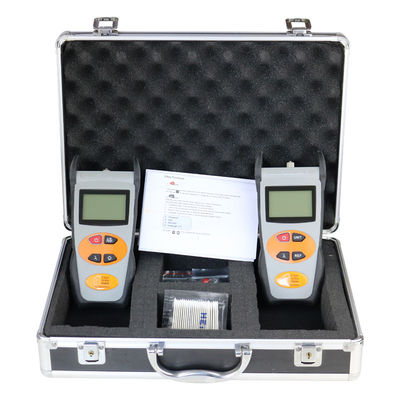

Basic, Versatile & Intelligent Optical Loss Test Kits with Power Meter and Light Source Pair for SM & MM Fiber Systems
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| الطول الموجي (نانومتر) | 850/1300/1310/1490/1550/1625 نانومتر | عدم اليقين الطبيعي (ديسيبل) | ± 0.5 |
|---|---|---|---|
| PDL (ديسيبل) | <0.25 | الخطية (ديسيبل) | ± 0.1 |
| المرور عبر خسارة الإدراج (ديسيبل) | <1.5 | أورل (ديسيبل) | >50 |
| نوع الكاشف | إنغااس | واجهة بصرية | انظر لطلب المعلومات |
| نوع الألياف | سم، 9/125م | العرض (مم) | شاشة LCD قابلة للقراءة بأشعة الشمس بإضاءة خلفية: 128 × 64 |
| وحدة القياس/إظهار النتائج | ديسيبل/ديسيبل ميلي واط/xW، P-Pass/F-Fail | دقة العرض (ديسيبل) | 0.01 |
| وظيفة التلقائية | إيقاف تلقائي قابل للتحديد | سعة الذاكرة الداخلية | 500 اختبار مع الطابع الزمني |
| نوع / عمر البطارية (تشغيل مستمر) | 3xAA، بطارية قلوية غير قابلة لإعادة الشحن 1.5 فولت (غير متضمنة) / 180 ساعة | حالة الصك | تم اختبار السقوط من ارتفاع 1.2 متر |
| درجة حرارة التشغيل/التخزين (°C) | -10 إلى +60 / -25 إلى +70 | الرطوبة النسبية | 95 ٪ |
| البعد (مم) | 200x90x50 | الوزن (ز) | 285 |
منتوج وصف
Optical Loss Test Kits
Basic Optical Loss Test Kit
--- Basic Optical Power Meter (BPM22)
--- Basic Optical Light Source (BLS22)
Versatile Optical Loss Test Kit
--- Versatile Optical Power Meter (VPM22)
--- Versatile Optical Light Source (VLS22)
Intelligent Versatile Optical Loss Test Kit
--- Intelligent Versatile Optical Power Meter (iVPM22)
--- Intelligent Versatile Optical Light Source (iVLS22)
Description
A fiber optic testing kit, with fiber power meter and light source pair, perfect for low to medium test volume on single mode & multimode systems, inspection and cleaning features are available. We gladly adjust kits to meet your exact needs.
*Please refer to OPM & OLS pages for details about the Features & Specifications of Basic and Versatile types.
The following is about the Intelligent type.
Overview
This intelligent optical loss test kit is our newly designed auto-testing kit. it aims at fiber network installation, fiber network engineering acceptance, and fiber network maintenance. iVPM-22 Power Meter combined operation with iVLS-22 Light Source, will realize auto-testing which is pressing one key all wavelengths of the light source will be automatically identified and automatically output power and loss value measurement. Also, this type has features of good appearance, good touch feeling, and considerate humanization design.
Features
* Power Meter Just press one key will realize auto testing---auto wavelength identify and auto testing and data saving on output power and loss value of each wavelength used with the same series OLS model iVLS-22
* Maximum 4 wavelengths can display at the same time
* Laser source the Auto wavelength switch from the first to the last
* More than 2 wavelengths combine in one output power of this OLS which makes it work with the same series auto intelligent power meter iVPM-22 realized auto wavelength identify and auto measurement on each wavelength output power and loss value just press one key
* Frequency ID/Tone detection---Automatic frequency identification
* Laser Source Tone generation, 270HZ, 330HZ, 1KHZ, 2KHZ
* Power Meter Data storage function, up to 1000 test records
* USB communication port to download the saved testing records
* Auto-off function can be activated or deactivated
* AA alkaline and AC adapter for the power supply
* Low battery indication
Specifications
|
Optical Power Meter |
||
| Type | iVPM-2270 | iVPM-2250 |
| Calibrated (nm) |
850,1300,1310,1490,1550,1625nm Others can be required on requests |
|
| Detector type | InGaAs | |
| Measurement Range (dBm) | -70~+6 | -50~+26 |
| Uncertainty (dB) | ±0.15 (3.5%) | |
| linearity (dB) | ±0.02 | |
| Display resolution (dB) | 0.01 | |
| Frequency ID (Hz) | 270,330,1K,2K | |
| Wave ID (nm) | 1310, 1490, 1550, 1625, 850, 1300 | |
| Date storage capacity | 1000 | |
| Communication Port | USB | |
|
Optical Light Source |
||
| Type | iVLS-22 | |
| Operating wavelength (nm) | 1310/1490/1550/1625nm±20nm (others can be specified, maximum can be 4 wavelength in one port) | |
| Applicable fiber | SM | |
| Laser type | FP-LD (others specify on requests) | |
| Maximum Output Power (dBm) | -7 | |
| Wavelength Spectral Width (nm) | <10 | |
| Stability(dB,15min,20℃) | ±0.02 | |
| Stability(dB,8H,20℃) | ±0.1 | |
| Modulation (Hz) | CW, 270,330,1K,2K | |
| Optical Connector type | FC, SC, ST interchangeable | |
| Alkaline battery | 3xAA, 1.5V | |
| Power Supply Adaptor (V) | 8.4 | |
| Battery Operating time (H) | 200 | |
| Operation Temperature(℃) | -10～+60 | |
| Storage Temperature(℃) | -25～+70 | |
| Outline size (mm) | 200x90x50 | |
| Weight (g) | 285 | |
Order Information
| Model No. | Description |
| BLT-K22-AEU-50D |
Basic Optical Loss Test Kit,
Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, w/o Auto-wavelength Generation/Recognition (Dedicated Digital Encrypted Protocol), Exclusive SC, FC Switchable Adapter Caps, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V),
High Power Basic Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/o Auto-wavelength/Tone Recognition, SC, FC Switchable Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) |
| Model No. | Description |
| VLT-K22-APU-50D |
Versatile Optical Loss Test Kit,
Versatile Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Auto-wavelength/Tone Generation/Recognition (Dedicated Digital Encrypted Protocol), Premium SC & FC Switchable Adapters, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter,
High Power Versatile Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/ Auto-wavelength & Tone Recognition (Dedicated Digital Encrypted Protocol), Data Storage & USB to PC Software Report, SC, FC Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter |
| Model No. | Description |
| iVLT-K22-APU-50D |
Intelligent Versatile Optical Loss Test Kit,
Intelligent Versatile Handheld Optical Light Source, Single-mode Quad 1310/1490/1550/1625nm, FP-LD, 9/125μm, w/ Auto-wavelength/Tone Generation/Recognition (Dedicated Digital Encrypted Protocol), Premium SC & FC Switchable Adapters, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter,
High Power Intelligent Versatile Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/ Auto-wavelength & Tone Recognition (Dedicated Digital Encrypted Protocol), Data Storage & USB to PC Software Report, SC, FC Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter |
We gladly adjust kits to meet your exact needs.
Inspection and cleaning features are available.
